Article: SW/S4.5
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | SW/S4.5 |
| Product ID: | GHQ6050061R0001 |
| EAN: | 4016779500968 |

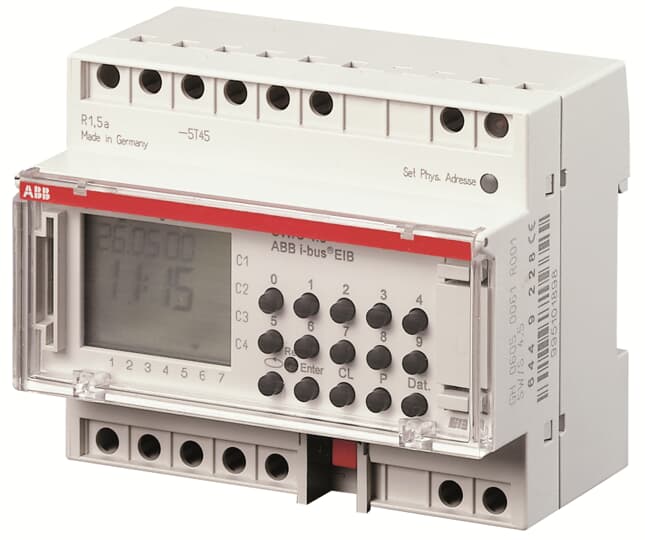

| Catalog Description: | SW/S4.5 Time Switch, 4 Channels, MDRC |
| Long Description: | Provides timed switching in a daily, weekly or yearly program of electrical load groups via the ABB i-bus®. Each channel can switch a load group ON or OFF or send a brightness value to dimming actuators. |
| |
| Product Name: | Automation, Logic and Time Control |
| Number of Channels: | 4 |
| Compatible Bus Systems: | KNX (TP) |
| Mounting Type: | DIN-Rail |
| Options Provided: | Weekly program |
| Annual program | |
| Astro program | |
| Days off programmable | |
| |
| RoHS Status: | No declaration needed |
| |
| Width in Number of Modular Spacings: | 6 |
| Product Net Width: | 108 mm |
| Product Net Height: | 90 mm |
| Product Net Depth / Length: | 65 mm |
| Product Net Weight: | 0.488 kg |
| Size: | 6 |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 110 mm |
| Package Level 1 Height: | 90 mm |
| Package Level 1 Depth / Length: | 155 mm |
| Package Level 1 Gross Weight: | 0.53 kg |
| Package Level 1 EAN: | 4016779500968 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389091 |
| Replacement Product ID (NEW): | 2CDG120039R0011 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Instructions and Manuals: | GHQ6007054P0001 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC509020D0201 |
| Instructions and Manuals: | GHQ6007054P0001 |
| |
| ETIM 6: | EC000689 - Time switch for bus system |
| ETIM 7: | EC000689 - Time switch for bus system |
| ETIM 8: | EC000689 - Time switch for bus system |
| EPLAN Catalog Tree: | Electrical engineering / Sensor, switch, and pushbutton / General |
| CN8: | 8538 90 91 |
| eClass: | V11.0 : 27143140 |
