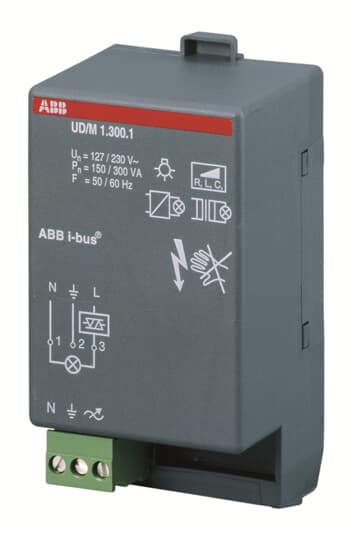

UD/M1.300.1 Universal Dim Actuator Module, 1-fold, 300 VA
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | UD/M1.300.1 |
| Product ID: | 2CDG110012R0011 |
| EAN: | 4011395042816 |
| Catalog Description: | UD/M1.300.1 Universal Dim Actuator Module, 1-fold, 300 VA |
| Long Description: | Module for plugging into the Room Controller Basis Device. It dims incandescent lamps, 230 V or low halogen lamps with up to 300 W/VA. Automatic load detection. Compensated against ripple-control and voltage fluctuations. Only 2 W minimum load. |
| |
| Product Name: | Multifunction Room Automation |
| Rated Operational Voltage: | 230 V AC |
| Rated Frequency (f): | 50 Hz |
| Power Loss: | 0 W |
| Number of Outputs: | 1 |
| Number of LEDs: | 0 |
| Number of Digital Inputs: | 0 |
| Compatible Bus Systems: | KNX (TP) |
| Mounting Type: | Built-in Installation |
| Manual Operation: | No |
| Mounting on DIN Rail: | No |
| Color: | Anthracite |
| Number of Batteries: | 0 |
| |
| Degree of Protection: | IP20 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Product Net Width: | 49 mm |
| Product Net Height: | 42 mm |
| Product Net Depth / Length: | 93 mm |
| Product Net Weight: | 0.154 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 85 mm |
| Package Level 1 Height: | 73 mm |
| Package Level 1 Depth / Length: | 96 mm |
| Package Level 1 Gross Weight: | 0.18 kg |
| Package Level 1 EAN: | 4011395042816 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85371091 |
| E-Number (Finland): | 2815189 |
| E-Number (Sweden): | 1751434 |
| E-Number (Switzerland): | 405445015 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK2017-108831 |
| Instructions and Manuals: | GHQ6607018P0001 |
| RoHS Information: | 9AKK2017-108831 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC514016D0202 |
| Instructions and Manuals: | GHQ6607018P0001 |
| |
| ETIM 6: | EC001094 - Dimming actuator for bus system |
| ETIM 7: | EC001094 - Dimming actuator for bus system |
| ETIM 8: | EC001094 - Dimming actuator for bus system |
| EPLAN Catalog Tree: | Electrical engineering / Sensor, switch, and pushbutton / Switch , pushbutton |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8537 10 91 |
| eClass: | V11.0 : 27143123 |
| Object Classification Code: | A |
