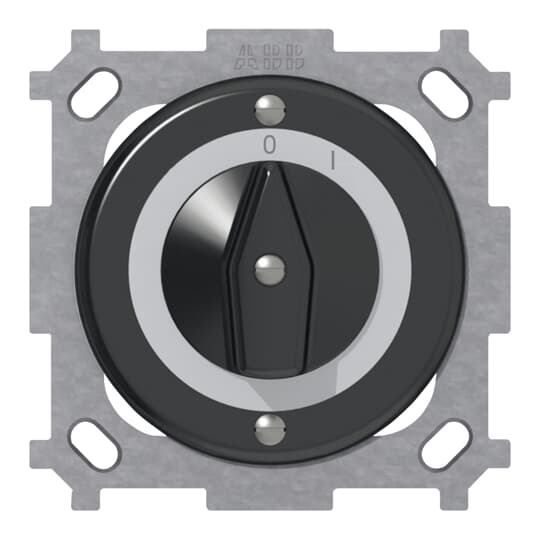

WC04.TYZ.0514 ABB Schwenktaster "Classic" 1x Arbeitskontakt, mit Drehgriff Z-Typ UP 25A / 250 V Schwarz
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | WC04.TYZ.0514 |
| Product ID: | 2CCA370301R0001 |
| EAN: | 7610881958722 |
| Catalog Description: | WC04.TYZ.0514 ABB Schwenktaster "Classic" 1x Arbeitskontakt, mit Drehgriff Z-Typ UP 25A / 250 V Schwarz |
| Long Description: | 1x Arbeitskontakt, mit Drehgriff, Z-Typ, UP, 25A / 250 V |
| Bestehend aus: Grundelement, Befestigungsplatte 77 x 77mm, Frontscheibe, Drehgriff | |
| Einbautiefe: 30mm | |
| |
| Product Name: | ABB Schwenktaster "Classic" 1x Arbeitskontakt, mit Drehgriff Z-Typ UP 25A / 250 V Schwarz |
| Rated Voltage (Ur): | 250 V |
| Rated Current (In): | 25 A |
| Contacts Configuration: | 1 NO, 0 NC |
| Number of Poles: | 1 |
| Actuator Type: | Turn button |
| Mounting Type: | Flush mounted (plaster) |
| Type of Fastening: | Screw |
| Surface Finishing: | Surface protection: Untreated |
| Surface finishing: Glossy | |
| Material: | Plastic |
| Model Number: | Revolving contact |
| RAL Number: | RAL 9005 - Jet Black |
| Color: | Black |
| |
| Degree of Protection: | IP20 |
| RoHS Status: | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| Environmental Information: | 2CCC002002D0201 |
| |
| Product Net Width: | 77 mm |
| Product Net Height: | 77 mm |
| Product Net Depth / Length: | 56 mm |
| Product Net Weight: | 46 g |
| Product Net Length: | 68 mm |
| Built-In Depth (t2): | 45 mm |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 90 mm |
| Package Level 1 Height: | 75 mm |
| Package Level 1 Depth / Length: | 90 mm |
| Package Level 1 Gross Weight: | 71 g |
| Package Level 1 EAN: | 7610881958722 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365000 |
| E-Number (Switzerland): | 347633352 |
| Country of Origin: | Austria (AT) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CCC002003D2301 |
| Environmental Information: | 2CCC002002D0201 |
| Instructions and Manuals: | 9AKK107046A0051 |
| REACH Declaration: | 2CCC005076D0201 |
| RoHS Information: | 2CCC005075D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107046A0051 |
| Instructions and Manuals: | 9AKK107046A0051 |
| |
| ETIM 6: | EC000029 - Push button |
| ETIM 7: | EC000029 - Push-switch button |
| ETIM 8: | EC000029 - Push-switch button |
| WEEE Category: | Product Not in WEEE Scope |
