General Information | |
| Extended Product Type: | UZA612 |
| Product ID: | 2CPX031123R9999 |
| EAN: | 4011617311232 |

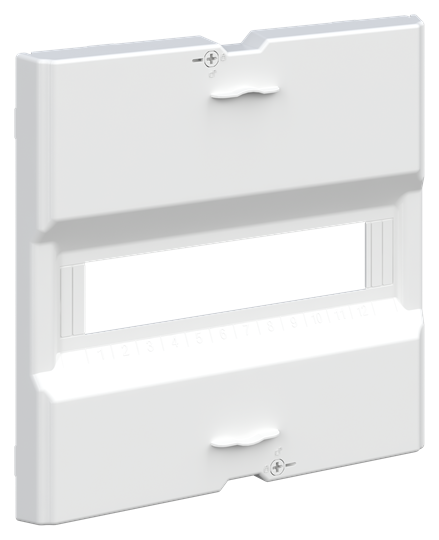

| Catalog Description: | UZA612 Cover |
| Long Description: | Plastic cover suitable for UK61..., with 45 mm already numbered device slots for 1 x 12 modules, if necessary, the cover slot can be extended with 12—14 modules, the cover is fastened with 90° quick-locking screws, the cover is sealable as a standard option. |
| |
| Product Name: | Cover |
| Number of Rows: | 1 |
| Accessory Type: | cover |
| Enclosure Type: | Cover |
| DIN Place Units: | 12 |
| Model Number: | device support |
| RAL Number: | RAL 9016 - Traffic White |
| Color: | White |
| |
| Degree of Protection: | IP2XC |
| |
| Product Net Width: | 306 mm |
| Product Net Height: | 296 mm |
| Product Net Depth / Length: | 34 mm |
| Product Net Weight: | 0.257 kg |
| |
| Package Level 1 Units: | pack 1 piece |
| Package Level 1 Width: | 312.000 mm |
| Package Level 1 Height: | 33.000 mm |
| Package Level 1 Depth / Length: | 299.000 mm |
| Package Level 1 Gross Weight: | 0.267 kg |
| Package Level 1 EAN: | 4011617311232 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| E-Number (Sweden): | 2201175 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | No document needed |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| 2CPC000003B0101 | |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC000775 - Cover for distribution board |
| ETIM 7: | EC000775 - Cover for distribution board |
| ETIM 8: | EC000775 - Cover for distribution board |
| EPLAN Catalog Tree: | Mechanics / Housing accessories, internal extension / General |
| WEEE Category: | Product Not in WEEE Scope |
| CN8: | 85389099 |
| Object Classification Code: | U |
