Junction Box LD7 Industrial Plugs and Sockets Accessorie
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | Junction Box LD7 |
| Product ID: | 2CMA136534R1000 |
| EAN: | 7392696363341 |
| Catalog Description: | Junction Box LD7 Industrial Plugs and Sockets Accessorie |

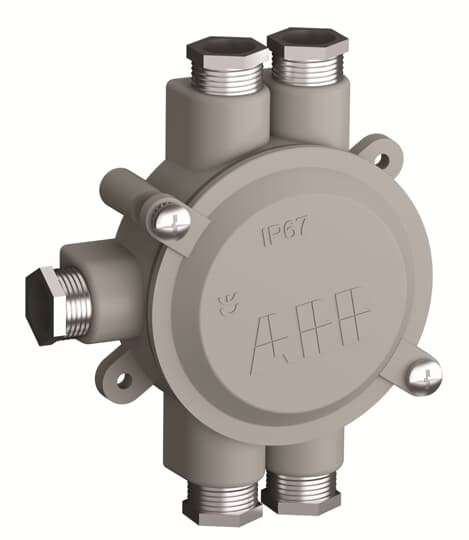

| Long Description: | Impact resistant junction boxes made of aluminiun alloy and painted gray. The boxes come with lid, gasket and screws. They are equipped with 4-pole terminal blocks, earth screws and complete cable glands. Height 37mm. Five cable entries, two up, two down and one to the left. |
| Slagtåliga kopplingsdosor kapsIingsklass IP67 med Märkspänning = 500V~ tillverkade i pressgjuten lättmetall och lackerade i grå kulör. Dosorna levereras med lock, lockpackning och lockskruvar. De är försedda med 4-polig kopplingsplint, jordskruv och kompletta kabelförskruvningar. Yttre totaldjup 37mm. Inre djup 32,5mm. Fem genomföringar Pr 18,6 två upp, två ner och en åt vänster. | |
| |
| E-Number (Sweden): | 1442007 |
| EAN: | 7392696363341 |
| Country of Origin: | Poland (PL) |
| Minimum Order Quantity: | 5 piece |
| |
| Product Net Width: | 110 mm |
| Product Net Height: | 37 mm |
| Product Net Weight: | 0.27 kg |
| |
| Package Level 1 Width: | 379 mm |
| Package Level 1 Depth / Length: | 580 mm |
| Package Level 1 Height: | 347 mm |
| Package Level 1 Gross Weight: | 1.35 kg |
| Package Level 1 EAN: | 7392696363341 |
| Package Level 1 Units: | box 5 piece |
| |
| RoHS Status: | No declaration needed |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Environmental Information: | 2CMC000057M0000 |
| RoHS Information: | 2CMC700057D0001 |
| |
| Additional Information: | Pr 18,6 |
| Ambient Temperature: | -25 ... 40 °C |
| Color: | Grey |
| Connection Type: | Screw Clamp |
| Degree of Protection: | IP67 |
| Entrance Type: | Type of housing feed-through: Thread |
| Function: | Junction box |
| Housing Material: | Aluminium |
| Includes: | Clamp |
| Invoice Description: | Ind. P&S#LD7 |
| Mounting Holes: | 53x76 |
| Mounting Type: | Wall-/ceiling mounting |
| Number of Poles: | 4 |
| Order Multiple: | 5 piece |
| Product Main Type: | LD |
| Product Name: | Industrial Plugs and Sockets Accessorie |
| Protection Type: | Watertight |
| Rated Voltage (Ur): | 500 V |
| Rated Insulation Voltage (Ui): | 500 V |
| Shape: | Round |
| Standards: | IEC 60685-1 |
| Suitable For: | Spare Parts |
| Suitable for Product Class: | Industrial Plugs and Sockets |
| Tube Diameter: | 16 mm |
| Instructions and Manuals: | 2CMC700014C0016 |
| RAL Number: | RAL 7001 - Silver Grey |
| |
| eClass: | 27149226 |
| UNSPSC: | 39120000 |
