Article: EIU32.0
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | EIU32.0 |
| Product ID: | 1SAJ262000R0100 |
| EAN: | 4013614515811 |

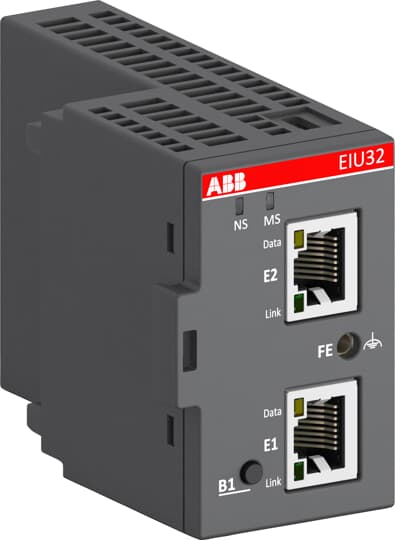

| Catalog Description: | EIU32.0 EtherNet/IP Interface |
| Long Description: | The EIU32.0 EtherNet/IP communication interface supports the EtherNet/IP network protocol. |
| |
| Standards: | CAN/CSA C22.2 No.142 |
| IEC/EN 63000 | |
| IEC 61131-2 | |
| IEC/EN 61000-6-2 | |
| IEC/EN 61000-6-4 | |
| UL 508 | |
| Product Name: | EtherNet / IP Interface |
| Suitable For: | UMC100.3 |
| Suitable for Isolation: | No |
| Rated Control Supply Voltage (Us): | 24 V DC |
| Power Loss: | Approximately 2.2 W |
| Fieldbus Interface Type: | EtherNet/IP |
| Mounting Type: | UMC100.3/Single Mounting |
| Mounting on DIN Rail: | With Single Mounting KIt |
| |
| Degree of Protection: | IP20 |
| |
| Product Net Width: | 42.5 mm |
| Product Net Height: | 64 mm |
| Product Net Depth / Length: | 93.3 mm |
| Product Net Weight: | 0.109 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 68 mm |
| Package Level 1 Height: | 100 mm |
| Package Level 1 Depth / Length: | 49 mm |
| Package Level 1 Gross Weight: | 0.129 kg |
| Package Level 1 EAN: | 4013614515811 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85176200 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| ATEX Certificate: | No |
| cULus Certificate: | cULus61010_20210816-E179811 |
| Declaration of Conformity - CE: | 1SVD981065-00 |
| Declaration of Conformity - UKCA: | 1SVD981065-10 |
| DNV GL Certificate: | TAA000015X |
| Instructions and Manuals: | 2CDC135057M6801 |
| RoHS Information: | 1SVD981065 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC135055D0201 |
| Instructions and Manuals: | 2CDC135057M6801 |
| |
| ETIM 6: | EC001604 - Fieldbus, decentr. periphery - communication module |
| ETIM 7: | EC001604 - Fieldbus, decentr. periphery - communication module |
| ETIM 8: | EC001604 - Fieldbus, decentr. periphery - communication module |
| EPLAN Catalog Tree: | Electrical engineering / Protection devices / Motor overload switch |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 8517 62 00 |
| eClass: | V11.0 : 27242608 |
| Object Classification Code: | K |
