General Information | |
| Extended Product Type: | UK612K |
| Product ID: | 2CPX031379R9999 |
| EAN: | 4011617313793 |

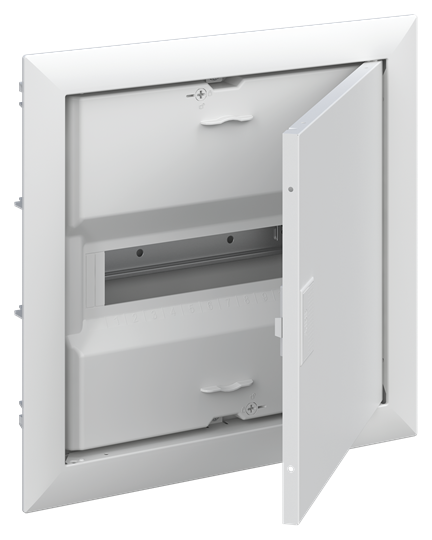

| Catalog Description: | UK612K Consumer unit |
| Long Description: | Consumer unit, series UK600, for the internal use, with closed doorframe and door, class of protection II (double insulated), degree of protection IP30, applicable standards: EN 60670-24, IK code 07, Rated operational voltage 400V AC 50/60 Hz, rated current 63 A, Glow wire resistance 850°C, powder-coated, in RAL 9016, enclosure out of thermoplast, with trim frame and metal door, door out of sheet steel, in RAL 9016, with TIP-in closure, door opening angle 120 degree, door hinge right or left, cable entry on top via cable entry slide part is pre-punched, on bottom via cable entry slide part is pre-punched, on side via pre-punched, rear wall pre-punched, dimensions in mm (H x W x D): 372 x 384 x 97, Shutter frame dimensions in mm (H x W x D): 372 x 384 x 9, 1-rows, Space units 12, Row distance in mm: 125, covers out of Plastic, 90 degree press and turn closure, without terminals without terminal, cable fastening rail integrated, assembled with device carrier, device support removable |
| |
| Standards: | DIN 43871 |
| Product Name: | Consumer unit |
| Rated Operational Voltage: | Maximum 400 V |
| Operational Voltage: | 400 V |
| Rated Current (In): | 63 A |
| Power Loss: | Δt = 30K 31 W |
| Number of Rows: | 1 |
| Closure Type: | Push Button |
| Configuration Type: | assembled with device carrier |
| Cover Plate Type: | Door |
| Enclosure Type: | Consumer unit |
| Mounting Type: | Flush-mounted |
| Door Type: | Single |
| Housing Material: | Plastic |
| Cover Style: | Closed |
| DIN Place Units: | 12 |
| RAL Number: | RAL 9016 - Traffic White |
| Color: | Traffic white |
| Terminal Type: | No Terminals |
| |
| Degree of Protection: | IP30 |
| Protection Class: | Isolated |
| |
| Width in Number of Modular Spacings: | 12 |
| Product Net Width: | 384 mm |
| Product Net Height: | 372 mm |
| Product Net Depth / Length: | 97 mm |
| Product Net Weight: | 2.379 kg |
| Built-In Depth (t2): | 75 mm |
| |
| Package Level 1 Units: | pack 1 piece |
| Package Level 1 Width: | 390.000 mm |
| Package Level 1 Height: | 380.000 mm |
| Package Level 1 Depth / Length: | 115.000 mm |
| Package Level 1 Gross Weight: | 2.474 kg |
| Package Level 1 EAN: | 4011617313793 |
| Package Level 2 Units: | pallet (lift) 90 piece |
| Package Level 2 Width: | 800.000 mm |
| Package Level 2 Height: | 1820.000 mm |
| Package Level 2 Depth / Length: | 1200.000 mm |
| Package Level 2 Gross Weight: | 234.11 kg |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85381000 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK107992A8137 |
| Instructions and Manuals: | 2CPC129380M5601 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CPC000003B0101 |
| Instructions and Manuals: | 2CPC129380M5601 |
| |
| ETIM 6: | EC000214 - Small distribution board |
| ETIM 7: | EC000214 - Small distribution board |
| ETIM 8: | EC000214 - Small distribution board |
| EPLAN Catalog Tree: | Mechanics / Housings / General |
| WEEE Category: | Product Not in WEEE Scope |
| CN8: | 85381000 |
| Object Classification Code: | U |
