Article: UZG648
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | UZG648 |
| Product ID: | 2CPX031121R9999 |
| EAN: | 4011617311218 |

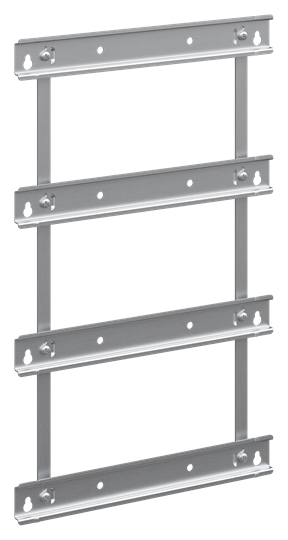

| Catalog Description: | UZG648 Mounting chassis |
| Long Description: | Device carrier with removable DIN rails, suitable for UK64..., the solid metal DIN rail frame with key holes insures an easy and timesaving installation . |
| |
| Product Name: | Mounting chassis |
| Number of Rows: | 4 |
| Accessory Type: | DIN Rail Frame |
| Enclosure Type: | Mounting chassis |
| Material: | Steel |
| DIN Place Units: | 48 |
| Model Number: | device support |
| RAL Number: | RAL 9016 - Traffic White |
| Color: | White |
| |
| Product Net Width: | 255 mm |
| Product Net Height: | 410 mm |
| Product Net Depth / Length: | 16 mm |
| Product Net Weight: | 0.543 kg |
| |
| Package Level 1 Units: | pack 1 piece |
| Package Level 1 Width: | 255.000 mm |
| Package Level 1 Height: | 412.000 mm |
| Package Level 1 Depth / Length: | 17.000 mm |
| Package Level 1 Gross Weight: | 0.565 kg |
| Package Level 1 EAN: | 4011617311218 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85381000 |
| E-Number (Sweden): | 2201183 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | No document needed |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| 2CPC000003B0101 | |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC002625 - Mounting accessories (switchgear cabinet) |
| ETIM 7: | EC002625 - Mounting accessories (switchgear cabinet) |
| ETIM 8: | EC002625 - Mounting accessories (enclosure/cabinet) |
| EPLAN Catalog Tree: | Mechanics / Housing accessories, internal extension / Mounting chassis |
| WEEE Category: | Product Not in WEEE Scope |
| CN8: | 85381000 |
| Object Classification Code: | U |
