General Information | |
| Extended Product Type: | S803S-SCL63 |
| Product ID: | 2CCS800900R0301 |
| EAN: | 7612271208929 |

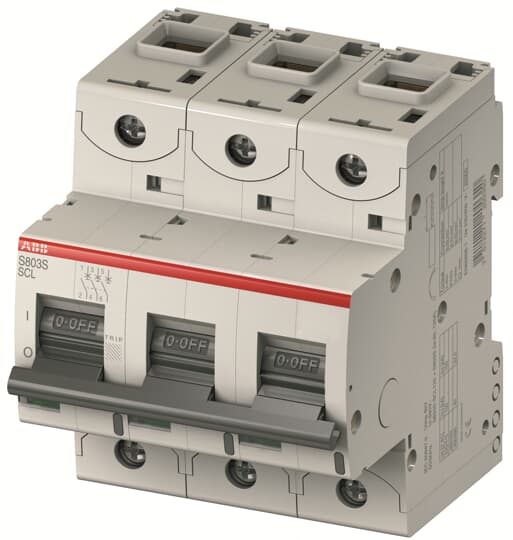

| Catalog Description: | S803S-SCL63 Short-circuit limiter |
| Long Description: | The S803S-SCL63 is a 3-pole short-circuit current limiter for 63A with cage terminal. It can be used together with S800 High Performance Circuit Breaker or manual Manual Motor Starter. In combination it ensures reliable switch-off of short-circuits currents up to 100kA at 440V AC. For applications at 690V AC the combination of S803S-SCL and S800 or Manual Motor Starter ensures a protection up to 50kA. The S803S-SCL63 has a lever, so in case of a fault you have to reset it. It means in case of TRIP, you have to switch the S803S-SCL63 at first to OFF and then to ON again.Only approved combinations between S803S-SCL63 and S800 or Manual Motor Starter are allowed to be used. |
| |
| Standards: | IEC/EN 60947-2 |
| Product Name: | Short-circuit limiter |
| Suitable For: | S800S |
| Rated Operational Voltage: | 690 V AC |
| Rated Insulation Voltage (Ui): | 690 V AC |
| Rated Impulse Withstand Voltage (Uimp): | 8 kV |
| Rated Operational Current (Ie): | 63 A |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu): | (240 / 415 V AC) 100 kA |
| (254 / 440 V AC) 100 kA | |
| (289 / 500 V AC) 65 kA | |
| (400 / 690 V AC) 50 kA | |
| Rated Conditional Short-Circuit Current (Inc): | 50 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics): | (240 / 415 V AC) 100 kA |
| (254 / 440 V AC) 100 kA | |
| (289 / 500 V AC) 65 kA | |
| (400 / 690 V AC) 50 kA | |
| Rated Uninterrupted Current (Iu): | 63 A |
| Rated Frequency (f): | 50...60 Hz |
| Apparent Power Output: | Secondary 43470 V·A |
| Power Loss: | 12 W |
| at Rated Operating Conditions per Pole 4 W | |
| Contact Position Indication: | ON / OFF / TRIP |
| Number of Poles: | 3 |
| Tightening Torque: | 3.5 N·m |
| Mounting Type: | DIN rail |
| Actuator Marking: | I / O |
| Housing Material: | Insulation group I, RAL 7035 |
| Mounting on DIN Rail: | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Mounting Position: | Any |
| Recommended Screw Driver: | Pozidriv 2 |
| Connecting Capacity: | Flexible 1 ... 50 mm² |
| Stranded 1 ... 70 mm² | |
| Terminal Type: | Screw Terminals |
| |
| Ambient Air Temperature: | Operation -25 ... +60 °C |
| Storage -40 ... +70 °C | |
| Degree of Protection: | acc. to IEC 60529 IP20 |
| Environmental Conditions: | Damp Heat Cyclic acc. to IEC 60068-2-30 12+12 cycle |
| Damp Heat Cyclic acc. to IEC 60068-2-30 55°C @ 90-96% | |
| Damp Heat Cyclic acc. to IEC 60068-2-30 25°C @ 90-100% | |
| Dry Heat Test B acc. to IEC 60068-2-2 16 hour @ 55 °C | |
| Dry Heat Test B acc. to IEC 60068-2-2 2 hour @ 70 °C | |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Environmental Information: | 2CCY413207D0203 |
| |
| Product Net Width: | 81 mm |
| Product Net Height: | 95 mm |
| Product Net Depth / Length: | 82.5 mm |
| Product Net Weight: | 735 g |
| Product Net Length: | 82.5 mm |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 105 mm |
| Package Level 1 Height: | 99 mm |
| Package Level 1 Depth / Length: | 86 mm |
| Package Level 1 Gross Weight: | 770 g |
| Package Level 1 EAN: | 7612271208929 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85363000 |
| E-Number (Finland): | 3212452 |
| Replacement Product ID (NEW): | 2CCS803901R0599 |
| Country of Origin: | Switzerland (CH) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CCC413015D0601 |
| Environmental Information: | 2CCY413207D0203 |
| Instructions and Manuals: | 9AKK106930A3418 |
| RoHS Information: | 2CCC413015D0601 |
| 9AKK107680A3903 | |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CCC413003C0208 |
| Instructions and Manuals: | 9AKK106930A3418 |
| |
| ETIM 6: | EC000239 - Current limiter |
| ETIM 7: | EC000239 - Current limiter |
| ETIM 8: | EC000239 - Current limiter |
| EPLAN Catalog Tree: | Electrical engineering / Protection devices / General |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 85363020 |
| Object Classification Code: | F |
