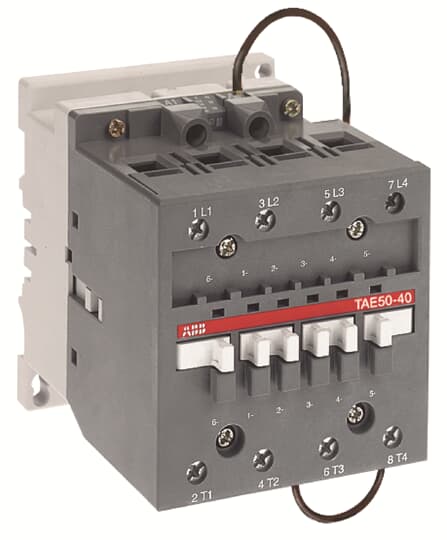

TAE50-40-00 77-143V DC Contactor
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | TAE50-40-00 77-143V DC |
| Product ID: | 1SBL359261R6200 |
| EAN: | 3471522115669 |
| Catalog Description: | TAE50-40-00 77-143V DC Contactor |
| Long Description: | TAE50 4-pole contactors are mainly used for controlling non-inductive or slightly inductive loads (i.e. resistance furnaces...) and generally for controlling power circuits up to 690 V AC and 440 V DC. The contactors can also be used for many other applications such lighting... The TAE... series 4-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 4 N.O. main poles, front and side-mounted add-on auxiliary contact blocks - Control circuit: DC operated with standard double-winding DC coils (with add-on factory-mounted lagging contact for insertion of the"holding" winding). TAE... contactors offer a large coil voltage range - Accessories: a wide range of accessories is available. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SNC001003C0202 |
| Instructions and Manuals: | FPTC407701P0003 |
| |
| Product Net Width: | 104 mm |
| Product Net Depth / Length: | 119.5 mm |
| Product Net Height: | 110 mm |
| Product Net Weight: | 1.43 kg |
| |
| Number of Main Contacts NO: | 4 |
| Number of Main Contacts NC: | 0 |
| Number of Auxiliary Contacts NO: | 0 |
| Number of Auxiliary Contacts NC: | 0 |
| Rated Operational Voltage: | Main Circuit 1000 V |
| Conventional Free-air Thermal Current (Ith): | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 100 A |
| Rated Operational Current AC-1 (Ie): | (690 V) 40 °C 100 |
| (690 V) 55 °C 85 | |
| Rated Operational Current AC-3 (Ie): | (415 V) 55 °C 50 A |
| (440 V) 55 °C 45 A | |
| (500 V) 55 °C 45 A | |
| (690 V) 55 °C 35 A | |
| (1000 V) 55 °C 23 A | |
| (380 / 400 V) 55 °C 50 A | |
| (220 / 230 / 240 V) 55 °C 53 | |
| Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1: | 8 x Ie AC-3 |
| Short-Circuit Protective Devices: | gG Type Fuses 100 A |
| Maximum Breaking Capacity: | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1300 A |
| cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 630 A | |
| Maximum Electrical Switching Frequency: | (AC-1) 300 cycles per hour |
| (AC-2 / AC-4) 150 cycles per hour | |
| (AC-3) 300 cycles per hour | |
| Rated Insulation Voltage (Ui): | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V |
| Rated Impulse Withstand Voltage (Uimp): | 8 kV |
| Mechanical Durability: | 5 million |
| Maximum Mechanical Switching Frequency: | 3600 cycles per hour |
| Rated Control Circuit Voltage (Uc): | DC Operation 77 ... 143 V |
| Coil Consumption: | Holding DC (Umin / Umax) 1.7 / 6.5 W |
| Pull-in at Max. Rated Control Circuit Voltage DC 450 W | |
| Pull-in DC (Umin / Umax) 120 / 250 W | |
| Operate Time: | Between Coil De-energization and NO Contact Opening 5 ... 15 ms |
| Between Coil Energization and NO Contact Closing 30 ... 30 ms | |
| Connecting Capacity Main Circuit: | Flexible with Cable End 6 ... 16 mm² |
| Rigid Cable 6 ... 25 mm² | |
| Connecting Capacity Auxiliary Circuit: | Flexible with Cable End 0.75 ... 2.5 mm² |
| Rigid Cable 1 ... 4 mm² | |
| Degree of Protection: | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP40 |
| Connecting Terminals (delivered in open position) Main Poles: | M 6 (+,-) pozidriv 2 screws with 1x (13 x 10 mm) connector |
| Terminal Type: | Screw Terminals |
| Technical UL/CSA | |
| General Use Rating UL/CSA: | (600 V AC) 80 A |
| |
| Ambient Air Temperature: | Close to Contactor for Storage -60 ... +80 °C |
| Near Contactor for Operation in Free Air -40 ... 55 °C | |
| Climatic Withstand: | acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II |
| Maximum Operating Altitude Permissible: | Without Derating 3000 m |
| Resistance to Shock acc. to IEC 60068-2-27: | Closed, Shock Direction: B1 10 g |
| Open, Shock Direction: B1 5 g | |
| Shock Direction: A 20 g | |
| Shock Direction: B2 15 g | |
| Shock Direction: C1 20 g | |
| Shock Direction: C2 20 g | |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Declaration of Conformity - CE: | 1SBD250804U1000 |
| EAC Certificate: | EAC_RU C-FR ME77 B01010 |
| Environmental Information: | 1SBD250024E1003 |
| GOST Certificate: | GOST_POCCFRME77B07175 |
| Instructions and Manuals: | FPTC407701P0003 |
| RoHS Information: | 1SBD250804U1000 |
| UL Certificate: | UL_20120830-E312527-10-1 |
| UL Listing Card: | UL_E312527 |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 142 mm |
| Package Level 1 Depth / Length: | 190 mm |
| Package Level 1 Height: | 136 mm |
| Package Level 1 Gross Weight: | 1.43 kg |
| Package Level 1 EAN: | 3471522115669 |
| Package Level 2 Units: | box 8 piece |
| Package Level 2 Gross Weight: | 11.44 kg |
| |
| Object Classification Code: | Q |
| ETIM 4: | EC000066 - Magnet contactor, AC-switching |
| ETIM 5: | EC000066 - Magnet contactor, AC-switching |
| ETIM 6: | EC000066 - Power contactor, AC switching |
| ETIM 7: | EC000066 - Power contactor, AC switching |
| eClass: | V11.0 : 27371018 |
| UNSPSC: | 39121529 |
