General Information | |
| Extended Product Type: | MG103 |
| Product ID: | 2CPX041209R9999 |
| EAN: | 4011617412090 |

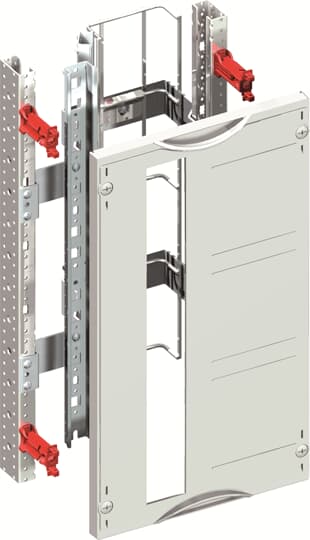

| Catalog Description: | MG103 Interior fitting module |
| Long Description: | Interior fitting module, CombiLine, mounted in cabinet, for DIN rail mounting devices, Grid unit 3 GU = 450 mm, panel width 1 = 250 mm, 36 Space units, Row distance in mm: 125, assembled with DIN rail 35 x 15 mm with perforation for wire holders, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: with cut-out, usuable as of the cabinet depth of 120 mm |
| |
| Standards: | DIN EN 61439-3 |
| DIN EN 61439-2 | |
| DIN 43880 | |
| Product Name: | Interior fitting module |
| Rated Operational Voltage: | Maximum 400 V |
| Operational Voltage: | 400 V |
| Number of DIN Rails for Mounting: | 3 |
| Number of Modular Spacings per DIN Rail: | 12 |
| Number of Rows: | 3 |
| Enclosure Mounting Frame: | WR or EDF |
| Enclosure Type: | Interior fitting module |
| Enclosure Type of Height: | 00 |
| DIN Place Units: | 36 |
| Meter Boards: | 0 |
| Module Function: | DIN rail mounting devices |
| Color: | Light grey |
| |
| Environmental Information: | 2CPC100001X0201 |
| |
| Product Net Width: | 250 mm |
| Product Net Height: | 450 mm |
| Product Net Depth / Length: | 120 mm |
| Product Net Weight: | 0.888 kg |
| Built-In Depth (t2): | 120 mm |
| |
| Package Level 1 Units: | pack 1 piece |
| Package Level 1 Width: | 250.000 mm |
| Package Level 1 Height: | 120.000 mm |
| Package Level 1 Depth / Length: | 450.000 mm |
| Package Level 1 Gross Weight: | 0.888 kg |
| Package Level 1 EAN: | 4011617412090 |
| Package Level 2 Units: | 12 piece |
| Package Level 2 Width: | 830 mm |
| Package Level 2 Height: | 1710 mm |
| Package Level 2 Depth / Length: | 1210 mm |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85381000 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Environmental Information: | 2CPC100001X0201 |
| Instructions and Manuals: | No document needed |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| 2CPC000003B0101 | |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC002575 - Distributor assembly for serial built-in device |
| ETIM 7: | EC002575 - Distributor assembly for serial built-in device |
| ETIM 8: | EC002575 - Distributor assembly for serial built-in device |
| EPLAN Catalog Tree: | Mechanics / Housing accessories, internal extension / General |
| WEEE Category: | Product Not in WEEE Scope |
| CN8: | 85381000 |
| Object Classification Code: | U |
