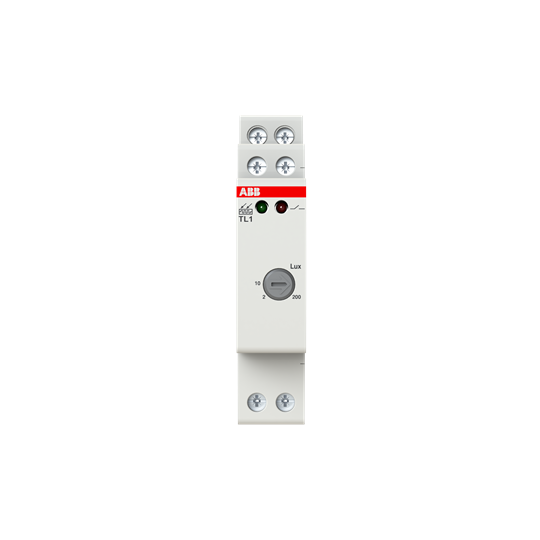

Article: TL1
We find the right product
for you
Official reseller
Expert engineering support
Configuration
):
General Information | |
| Extended Product Type: | TL1 |
| Product ID: | 2CSM229921R1341 |
| EAN: | 8012542299219 |
| Catalog Description: | TL1 Twilight switch |
| Long Description: | TL1 Twilight switches, 1 module. Include TLs |
| |
| Standards: | EN 60669-1EN 60662-2-1EN 60730-1 |
| Product Name: | Twilight switch |
| Function: | Twilight |
| Supply Voltage: | 110 ... 230 V AC |
| Rated Frequency (f): | 50 ... 60 Hz |
| Maximum Switching Power: | 1000 W |
| 300 W | |
| 300 W | |
| 100 W | |
| Power Consumption (@P | |
| cons | 0.4 W |
| 0.9 W | |
| Power Loss: | 0.9 W |
| Power Supply: | 110 ... 230 V AC |
| Number of Channels: | 1 |
| Tightening Torque: | 1.2 N·m |
| Delay Time (?): | On 20.7 ... 25.3 second [unit of time] |
| Off 20.7 ... 25.3 second [unit of time] | |
| Contact Type: | Normally Open (NO) |
| Lamp Type: | LED |
| Meter Type: | Analog |
| Mounting Type: | DIN rail |
| Screw Type: | PZ1 |
| Illuminance: | 2 ... 200 lx |
| Color: | White |
| Lamp Color: | Red / Green |
| Number of Batteries: | 0 |
| Cable Length: | 100 m |
| Connecting Capacity: | Solid 6 mm² |
| Terminal Type: | Screw Terminals |
| |
| Ambient Air Temperature: | Operation -25 ... 55 °C |
| Storage -40 ... 70 °C | |
| Degree of Protection: | Housing IP20 |
| |
| Width in Number of Modular Spacings: | 1 |
| Product Net Width: | 17.5 mm |
| Product Net Height: | 86 mm |
| Product Net Depth / Length: | 65 mm |
| Product Net Weight: | 0.155 kg |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 65 mm |
| Package Level 1 Height: | 75 mm |
| Package Level 1 Depth / Length: | 100 mm |
| Package Level 1 Gross Weight: | 0.187 kg |
| Package Level 1 EAN: | 8012542299219 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| E-Number (Finland): | 2619404 |
| E-Number (Sweden): | 1301374 |
| Country of Origin: | Bulgaria (BG) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CSC441016D2703 |
| EAC Certificate: | 9AKK108466A2495 |
| Instructions and Manuals: | 9AKK107991A3020 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107991A8329 |
| Instructions and Manuals: | 9AKK107991A3020 |
| Wiring Diagram: | 9AKK107992A8260 |
| |
| ETIM 6: | EC000189 - Twilight switch |
| ETIM 7: | EC000189 - Twilight switch |
| ETIM 8: | EC000189 - Twilight switch |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85364900 |
| Object Classification Code: | K |
