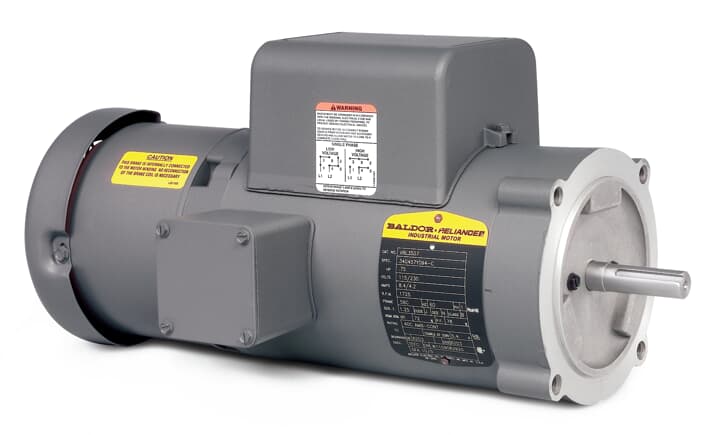

Article: VBL3507
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Global Commercial Alias: | VBL3507 |
| Product ID: | 7BVBL3507 |
| ABB Type Designation: | .75HP,1725RPM,1PH,60HZ,56C,BRAKE,34 |
| Catalog Description: | .75HP,1725RPM,1PH,60HZ,56C,BRAKE,3428LC |
| |
| ABB Type Designation: | .75HP,1725RPM,1PH,60HZ,56C,BRAKE,34 |
| Ambient Temperature: | 40 °C |
| Brake Present: | Yes |
| Brand / Label: | Baldor-Reliance |
| Catalog Number: | VBL3507 |
| Certification Agency: | CSA |
| UR | |
| Country of Origin: | United States (US) |
| Customs Tariff Number: | 85013100 |
| Design: | N |
| Dimension Diagram: | 34LYG457 |
| ETIM 7: | EC001851 - Electric motor |
| Efficiency Level: | Not Regulated / Exempt |
| Enclosure Type: | TEFC |
| Explosion Proof Group Class: | NONE |
| Frame Material: | Steel |
| Frequency (f): | 60 Hz |
| Global Commercial Alias: | VBL3507 |
| Gross Volume: | 3809.38 in³ |
| Gross Weight: | 18.16 kg |
| Horsepower Rating UL/CSA: | 0.750 Hp |
| IDEA Granular Category Code (IGCC): | 1329 >> Single phase motor AC |
| Invoice Description: | .75HP,1725RPM,1PH,60HZ,56C,BRAKE,3428LC |
| Made To Order: | No |
| Minimum Order Quantity: | 1 piece |
| Motor Base Type: | No Mounting |
| Motor Frame Size: | 56C |
| NEMA Design Code: | N |
| Number of Phases: | 1 |
| Number of Poles: | 4 |
| Number of Speeds: | Single Speed |
| Order Multiple: | 1 piece |
| Power Factor: | 78 % |
| Product Name: | Unit Handling Motors |
| Product Net Height: | 33.655 cm |
| Product Net Length: | 58.42 cm |
| Product Net Weight: | 18.16 kg |
| Product Net Width: | 31.75 cm |
| Product Type: | Undefined |
| Quote Only: | No |
| Rated Current (In): | 8.4 A |
| 4.2 A | |
| Rated Efficiency: | 72.0 % |
| Rated Speed: | 1,725 r/min |
| RoHS Information: | RoHS Compliant |
| Selling Unit of Measure: | piece |
| Service Factor: | 1.25 |
| Service Factor Percentage: | 1.25 % |
| Shaft Diameter: | 0.625 in |
| Standards: | NEMA |
| Starting of Motor: | Direct On Line |
| Stocked At (Warehouses): | China |
| Alabama, United States | |
| Alaska, United States | |
| UNSPSC: | 26101116 |
| Voltage Rating: | 230 V |
| 115 V |
