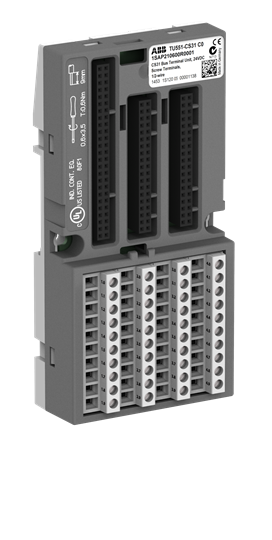

Article: TU551-CS31
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | TU551-CS31 |
| Product ID: | 1SAP210600R0001 |
| ABB Type Designation: | TU551-CS31 |
| EAN: | 4016779650229 |
| Catalog Description: | TU551-CS31:S500,Bus Terminal Unit,Screw |
| Long Description: | TU551-CS31:S500,Bus Terminal Unit,Screw for CS31 Bus-Modules |
| |
| ABB Type Designation: | TU551-CS31 |
| ABS Certificate: | 1SAA960002-0106 |
| Ambient Air Temperature: | Operation 0 ... +60 °C |
| Storage -40 ... +70 °C | |
| BV Certificate: | 1SAA960003-0204 |
| CN8: | 85389091 |
| CSA Certificate: | 1SAA960000-1712 |
| Cable Cross-Section: | 0.08 ... 2.5 mm² |
| Country of Origin: | Germany (DE) |
| Customs Tariff Number: | 85389091 |
| DNV Certificate: | 1SAA960002-0306 |
| Declaration of Conformity - C-Tick: | 1SAA960000-3302 |
| Declaration of Conformity - CE: | 1SAD938504-0162 |
| Declaration of Conformity - KCC: | 1SAA960001-4801 |
| Degree of Protection: | IP20 |
| EAN: | 4016779650229 |
| EPLAN Catalog Tree: | Electrical engineering / PLC / General |
| ETIM 7: | EC000810 - PLC mounting rack |
| ETIM 8: | EC000810 - PLC mounting rack |
| Environmental Information: | 1SAA960008-2403 |
| GL Certificate: | 1SAA960004-0409 |
| GOST Certificate: | 1SAA962000-2703 |
| Gross Weight: | 0.266 kg |
| Invoice Description: | TU551-CS31:S500,Bus Terminal Unit,Screw |
| LR Certificate: | 1SAA960002-0506 |
| Made To Order: | No |
| Maximum Operating Altitude Permissible: | 2000 m |
| Maximum Order Quantity: | 15 piece |
| Minimum Order Quantity: | 1 piece |
| Mounting Position: | Horizontal, Vertical possible with derating |
| Mounting Type: | DIN rail and panel mounting |
| Mounting on DIN Rail: | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Number of Analog Configurable I/Os: | 0 |
| Order Multiple: | 1 piece |
| Primary Voltage: | 24 V DC |
| Product Depth: | 40 mm |
| Product Main Type: | TU551 |
| Product Name: | Distributed Automation I/Os |
| Product Net Height: | 135 mm |
| Product Net Length: | 28 mm |
| Product Net Weight: | 0.236 kg |
| Product Net Width: | 67.5 mm |
| Product Type: | PLC-AC500 |
| Quote Only: | No |
| RINA Certificate: | 1SAA960003-0807 |
| RMRS Certificate: | 1SAA960001-0706 |
| RoHS Date: | 1050 |
| RoHS Information: | 1SAA960006-4410 |
| RoHS Status: | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| Selling Unit of Measure: | piece |
| Serial Port 1 Type: | CS31 |
| Serial Port 2 Type: | I/O-Bus |
| Short Description: | TU551-CS31:S500,Bus Terminal Unit,Screw |
| Stocked At (Warehouses): | Menden, Germany |
| Singapore, Singapore | |
| Hangzhou, China | |
| Supply Voltage: | 24 V DC |
| Terminal Type: | Screw Terminals |
| UL Certificate: | 1SAA960000-1612 |
| UNSPSC: | 32151703 |
| WEEE B2C / B2B: | Business To Business |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| cUL Certificate: | 1SAA960000-1712 |
| cULus Certificate: | 1SAA960000-1712 |
| eClass: | 27-24-22-92 |
