General Information | |
| Extended Product Type: | TZ620 |
| Product ID: | 2CPX010793R9999 |
| EAN: | 4011617107934 |
| Catalog Description: | TZ620 Enclosure accessories |

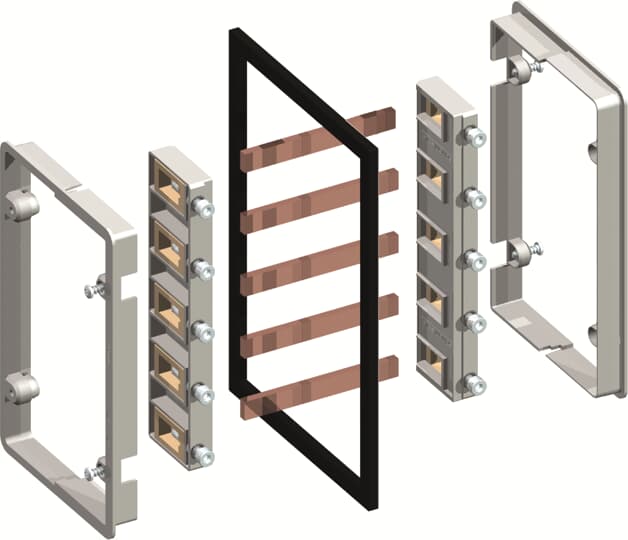

| Long Description: | Busbar connector, for connecting Cu rails between two cabinets, with insulating frame and incl. mounting material, 1 5-pole set for Cu 12 x 5 mm, suitable for TwinLine wall and standing cabinets. |
| |
| Product Name: | Enclosure accessories |
| Rated Current (In): | 250 A |
| Number of Poles: | 5 |
| Connection Type: | Cabinet / Cabinet |
| Enclosure Type: | Enclosure accessories |
| |
| Environmental Information: | 2CPC100001X0201 |
| SCIP: | 4149195d-7d1c-43aa-935c-946088f4e206 Germany (DE) |
| Simplified SCIP: | 4149195d-7d1c-43aa-935c-946088f4e206 Germany (DE) |
| |
| Product Net Width: | 85 mm |
| Product Net Height: | 233 mm |
| Product Net Depth / Length: | 157 mm |
| Product Net Weight: | 1.081 kg |
| |
| Package Level 1 Units: | pack 1 piece |
| Package Level 1 Width: | 180.000 mm |
| Package Level 1 Height: | 40.000 mm |
| Package Level 1 Depth / Length: | 250.000 mm |
| Package Level 1 Gross Weight: | 1.124 kg |
| Package Level 1 EAN: | 4011617107934 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85369010 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Environmental Information: | 2CPC100001X0201 |
| Instructions and Manuals: | 2CPC131022M5601 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| 2CPC000003B0101 | |
| Instructions and Manuals: | 2CPC131022M5601 |
| |
| ETIM 6: | EC000713 - Busbar coupler |
| ETIM 7: | EC000713 - Busbar coupler |
| ETIM 8: | EC000713 - Busbar coupler |
| EPLAN Catalog Tree: | Mechanics / Housings / Accessories |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85369010 |
| Object Classification Code: | U |
