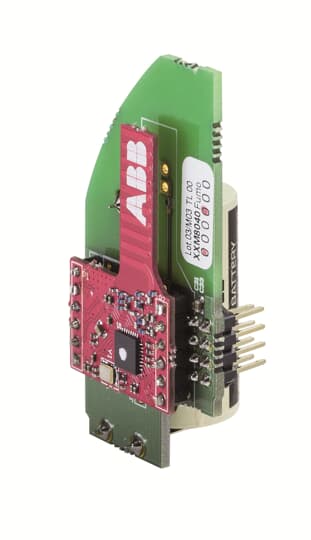

STD-W1.11 Smoke detector Wireless Interface Module
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | STD-W1.11 |
| Product ID: | 2CSY255361R1701 |
| EAN: | 8012542553618 |
| Catalog Description: | STD-W1.11 Smoke detector Wireless Interface Module |
| Long Description: | The module is required for interfacing the smoke detectors (article no. 6800-0-2721) or heat detectors (article no. 6800-0-2723) to the central unit. The module is equipped with an integrated lithium battery - minimum battery life: 10 years. The device features a bidirectional communication with the central unit that supervises it with a programmable supervision interval (typically every 15 minutes). It is possible to configure this parameter during the system commissioning. |
| |
| Product Name: | Smoke detector Wireless Interface Module |
| Operational Voltage: | 3 V |
| Continuous Operating Current (Ic): | 1.8 A |
| Mounting Type: | Surface-mounted |
| Battery Chemical Composition: | Lithium |
| Battery Type: | Industrial |
| Battery Weight: | 0.02 kg |
| Number of Batteries: | 1 |
| |
| Product Net Width: | 70 mm |
| Product Net Height: | 45 mm |
| Product Net Depth / Length: | 25 mm |
| Product Net Weight: | 0.020 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 0.05 m |
| Package Level 1 Height: | 0.03 m |
| Package Level 1 Depth / Length: | 0.075 m |
| Package Level 1 Gross Weight: | 0.05 kg |
| Package Level 1 EAN: | 8012542553618 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85311030 |
| Country of Origin: | Italy (IT) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | 2CSM600714D0901 |
| Popular Downloads | |
| Data Sheet, Technical Information: | No document needed |
| Instructions and Manuals: | 2CSM600714D0901 |
| |
| ETIM 6: | EC001764 - Technical detector for intrusion detection system |
| ETIM 7: | EC001764 - Technical detector for intrusion detection system |
| ETIM 8: | EC001764 - Technical detector for intrusion detection system |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85311030 |
