Article: STD-W5.11A
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | STD-W5.11A |
| Product ID: | 2CSY255021R1705 |
| EAN: | 8012542550211 |

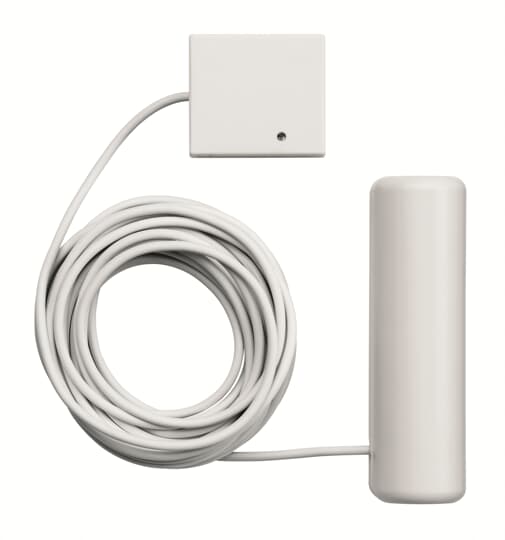

| Catalog Description: | STD-W5.11A Flood detector |
| Long Description: | It detects the presence of water. The minimum detectable level of the liquid is 1 millimeter, but it can be adjusted to higher levels. It is equipped with an anti-tamper (breakage or removal), self-diagnostics and control of battery charge device. The detector ic composed by the interface module and the flood detection probe. It features a bidirectional communication with the central unit that supervises it with a programmable supervision interval (typically every 15 minutes).iIt is possible to configure this parameter during the system commissioning. Spare lithium battery (Order code: 2CSY255331R0802). |
| |
| Product Name: | Flood detector |
| Operational Voltage: | 3 V |
| Continuous Operating Current (Ic): | 1.4 A |
| Transmission Standard: | Water |
| Mounting Type: | Surface-mounted |
| Color: | white |
| Battery Chemical Composition: | Lithium |
| Battery Type: | Portable |
| Battery Weight: | 0.02 kg |
| Number of Batteries: | 1 |
| |
| Product Net Width: | 190 mm |
| Product Net Height: | 121 mm |
| Product Net Depth / Length: | 70 mm |
| Product Net Weight: | 0.410 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 0.126 m |
| Package Level 1 Height: | 0.075 m |
| Package Level 1 Depth / Length: | 0.195 m |
| Package Level 1 Gross Weight: | 0.44 kg |
| Package Level 1 EAN: | 8012542550211 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85311030 |
| Country of Origin: | Italy (IT) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | 2CSM600715D0901 |
| 2CSM600715D0902 | |
| Popular Downloads | |
| Data Sheet, Technical Information: | No document needed |
| Instructions and Manuals: | 2CSM600715D0901 |
| 2CSM600715D0902 | |
| |
| ETIM 6: | EC001764 - Technical detector for intrusion detection system |
| ETIM 7: | EC001764 - Technical detector for intrusion detection system |
| ETIM 8: | EC001764 - Technical detector for intrusion detection system |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85311030 |
