Article: TA562-RS
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | TA562-RS |
| Product ID: | 1TNE968901R4300 |
| ABB Type Designation: | TA562-RS |
| EAN: | 6943747170138 |
| Catalog Description: | TA562-RS485:AC500,RS485 Serial Adapter |

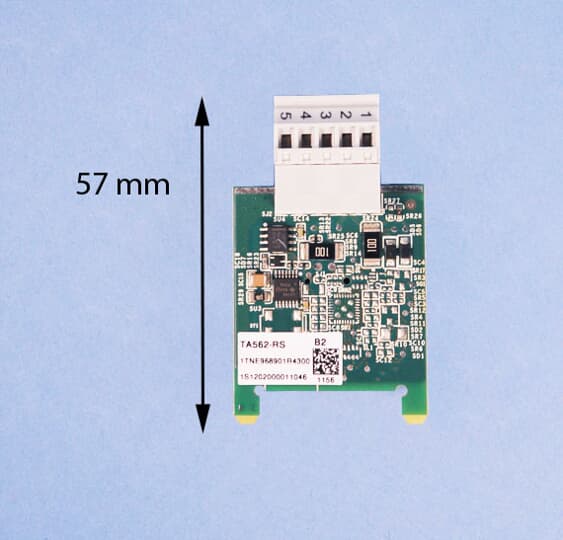

| Long Description: | TA562-RS485:AC500,RS485 Serial Adapter Option board,Screw terminal |
| |
| ABB Type Designation: | TA562-RS |
| ABS Certificate: | 1SAA960003-0102 |
| Ambient Air Temperature: | Operation 0 ... +60 °C |
| Storage -40 ... +70 °C | |
| BV Certificate: | 1SAA960004-0201 |
| CN8: | 85371091 |
| CSA Certificate: | 1SAA960000-1709 |
| Country of Origin: | China (CN) |
| Germany (DE) | |
| Customs Tariff Number: | 85389091 |
| DNV Certificate: | 1SAA960003-0302 |
| Declaration of Conformity - C-Tick: | 1SAA960001-3301 |
| Declaration of Conformity - CE: | 1SAD938508-0167 |
| Declaration of Conformity - KCC: | 1SAA960000-4801 |
| Degree of Protection: | IP20 |
| EAN: | 6943747170138 |
| EPLAN Catalog Tree: | Electrical engineering / PLC / General |
| ETIM 7: | EC002584 - Accessories for controls |
| ETIM 8: | EC002584 - Accessories/spare parts for controls |
| Environmental Information: | 1SAA960010-2404 |
| Fieldbus Interface Type: | ASCII, Modbus master/slave |
| GL Certificate: | 1SAA960005-0403 |
| GOST Certificate: | 1SAA962000-2703 |
| Gross Weight: | 0.029 kg |
| I/O Option: | eCo-option board with 1xRS485 |
| Invoice Description: | TA562-RS485:AC500,RS485 Serial Adapter |
| LR Certificate: | 1SAA960003-0502 |
| Made To Order: | No |
| Maximum Operating Altitude Permissible: | 2000 m |
| Maximum Order Quantity: | 75 piece |
| Minimum Order Quantity: | 1 piece |
| Order Multiple: | 1 piece |
| Product Main Type: | TA562 |
| Product Name: | Distributed Automation PLCs |
| Product Net Height: | 45 mm |
| Product Net Length: | 10 mm |
| Product Net Weight: | 0.012 kg |
| Product Net Width: | 32 mm |
| Product Type: | PLC-AC500-eCo |
| Quote Only: | No |
| RINA Certificate: | 1SAA960004-0803 |
| RMRS Certificate: | 1SAA960002-0701 |
| RoHS Date: | 0239 |
| RoHS Information: | 1SAA960010-4406 |
| RoHS Status: | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| SCIP: | b64f1352-f9d7-4c1e-aa86-e2f839be6667 Germany (DE) |
| Selling Unit of Measure: | piece |
| Serial Port 1 Type: | Optional RS485 non isolated, Programing, Modbus Master or slave, ASCII |
| Short Description: | TA562-RS485:AC500,RS485 Serial Adapter |
| Stocked At (Warehouses): | Menden, Germany |
| Finland | |
| New Berlin,Wisconsin, United States | |
| Singapore, Singapore | |
| Beijing, China | |
| Singapore, Singapore | |
| Tokyo, Japan | |
| Finland | |
| Hangzhou, China | |
| Australia, Australia | |
| UL Certificate: | 1SAA960000-1609 |
| UNSPSC: | 32151705 |
| WEEE B2C / B2B: | Business To Business |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| cUL Certificate: | 1SAA960000-1709 |
| eClass: | 27-24-22-92 |
| Where Used (as part of "kit") |
