General Information
Product ID:	3GKP084320-CEH
ABB Type Designation:	M3KP 80MB 8
Catalog Description:	No Description Available
Additional Information
ABB Type Designation:	M3KP 80MB 8
Altitude:	1000 m
Ambient Temperature:	40 °C
Bearing:	6205-2Z/C3
Bearing NDE:	6204-2Z/C3
Country of Origin:	Finland (FI)
Customs Tariff Number:	85015100
EX-Protection:	Exde

Electrical Data:

Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
D	T4	50 Hz	500 V	0.25 kW	705 r/min	0.96 A	0.520	60.70 %	3.40 N·m	3.10

Gas Group: IIB
Gross Weight: 32 kg
IC Class: IC411
IE Class Data (50 Hz): IE Class IE2

Full Load (100%) 60.7 %

Partial Load (75%) 57.4 %

Partial Load (50%) 50.0 %
IM Class: IMB14 IM3601
IP Class: IP55
Insulation Class: ICLF
Made To Order: No
Minimum Order Quantity: 1 piece
Number of Poles (High): 8
Package Level 1 Units: 0 carton
Pre Modified Motor Product ID: 3GKP084320-BEH

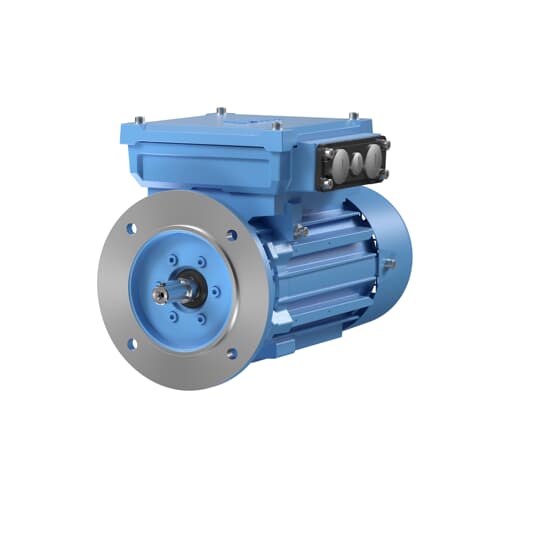

Product Name: 3-Phase squirrel cage motor
Product Net Weight: 29 kg
Product Type: 3KP2__M3KP_IE2_Flameproof_Exde_motor
Quote Only: No
Replaced Product ID (OLD): 3GKP084320-CEG

Selling Unit of Measure: piece
Temperature Class Default: T4
Terminator Box Location: Top
Two Speed Motor: No
Type of Duty: S1
UNSPSC: 26101100
Voltage Code: E
WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
