Article: PLV316
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | PLV316 |
| Product ID: | 2CMA100880R1000 |
| EAN: | 7392696008808 |
| Catalog Description: | Ind. P_S#PLV316 |

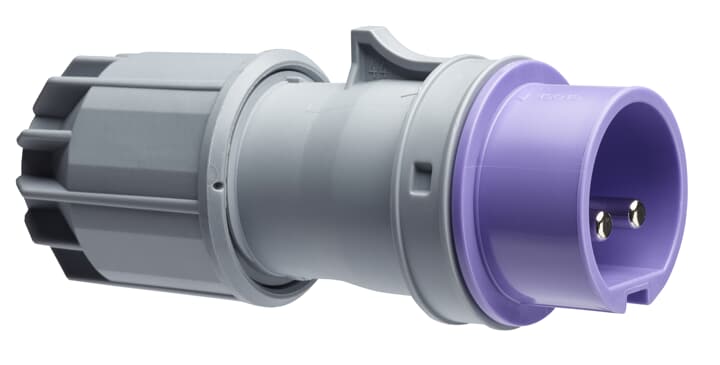

| Long Description: | Plug Extra low voltage, secondary key position 10h, rated current 16A, IP44 splashproof, 2-poles, color code Grey |
| |
| Color: | Purple |
| Minimum Order Quantity: | 10 piece |
| Customs Tariff Number: | 85366990 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CMC700010L0201 |
| Instructions and Manuals: | 2CMC700014C0016 |
| |
| Product Net Width: | 51 mm |
| Product Net Height: | 51 mm |
| Product Net Depth / Length: | 135 mm |
| Product Net Weight: | 0.160 kg |
| |
| Cable Diameter: | 8 ... 24 mm |
| Connection Type: | Screw |
| Function: | Extra low voltage plug |
| Rated Current (In): | 16 A |
| Rated Voltage (Ur): | 20 ... 25 V |
| Degree of Protection: | IP44 |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Declaration: | 2CMC700005D0001 |
| Declaration of Conformity - CE: | 2CMC700005D0001 |
| Environmental Information: | 2CMC000072M0000 |
| Instructions and Manuals: | 2CMC700014C0016 |
| REACH Declaration: | 2CMC700005D0001 |
| RoHS Information: | 2CMC700005D0001 |
| |
| E-Number (Sweden): | E2417728 |
| ETIM 6: | EC000140 - CEE plug |
| ETIM 7: | EC000140 - CEE plug |
| eClass: | 27440509 |
| UNSPSC: | 39120000 |
| |
| Package Level 1 Units: | box 10 piece |
| Package Level 1 Width: | 137 mm |
| Package Level 1 Depth / Length: | 137 mm |
| Package Level 1 Height: | 53 mm |
| Package Level 1 Gross Weight: | 1.6 kg |
| Package Level 1 EAN: | 7392696009287 |
