General Information | |
| Extended Product Type: | AM/S12.1 |
| Product ID: | GHQ6310062R0111 |
| EAN: | 4016779514811 |

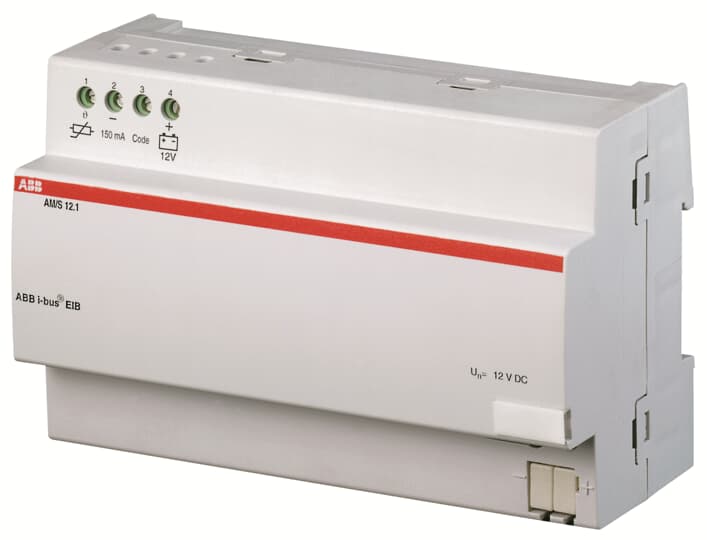

| Catalog Description: | AM/S12.1 Battery Module, 12 V DC, MDRC |
| Long Description: | Sealed lead acid battery module for maintaining the ABB i-bus® system voltage in case of a mains failure in connection with the Uninterruptible EIB Power Supply SU/S 30.640.1. Connection is made via standard cables. Minimum backup time: 10 min. |
| |
| Product Name: | Power Supply |
| Voltage Range: | 12 V DC |
| Buffer Voltage: | No |
| Power Loss: | 1 W |
| Number of LEDs: | 0 |
| Number of Integrated Chokes: | 0 |
| Number of Supplied Lines: | 1 |
| Mounting Type: | DIN-rail |
| Manual Operation: | No |
| Color: | Light grey |
| Battery Chemical Composition: | Lead-Acid |
| Battery Type: | Industrial |
| Battery Weight: | 0.294 kg |
| Number of Batteries: | 2 |
| |
| Degree of Protection: | IP20 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Width in Number of Modular Spacings: | 8 |
| Product Net Width: | 144 mm |
| Product Net Height: | 90 mm |
| Product Net Depth / Length: | 64.5 mm |
| Product Net Weight: | 0.761 kg |
| Size: | 8 modules |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 92 mm |
| Package Level 1 Height: | 65 mm |
| Package Level 1 Depth / Length: | 149 mm |
| Package Level 1 Gross Weight: | 0.81 kg |
| Package Level 1 EAN: | 4016779514811 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85072080 |
| E-Number (Finland): | 2815108 |
| E-Number (Sweden): | 1750035 |
| E-Number (Switzerland): | 405890015 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK501073D2701 |
| Instructions and Manuals: | GHQ6307067P0002 |
| RoHS Information: | 2CDK501073D2701 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC501004D0201 |
| 2CDC501017D0201 | |
| Installing and Commissioning Manual: | 2CDC501005D0202 |
| Instructions and Manuals: | GHQ6307067P0002 |
| |
| ETIM 6: | EC000357 - Rechargeable battery |
| ETIM 7: | EC000357 - Rechargeable battery |
| ETIM 8: | EC000357 - Rechargeable battery |
| EPLAN Catalog Tree: | Electrical engineering / Voltage source and generator / General |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8507 20 80 |
| eClass: | V11.0 : 27050403 |
| IDEA Granular Category Code (IGCC): | 4127 >> Power supply units |
| Object Classification Code: | A |
