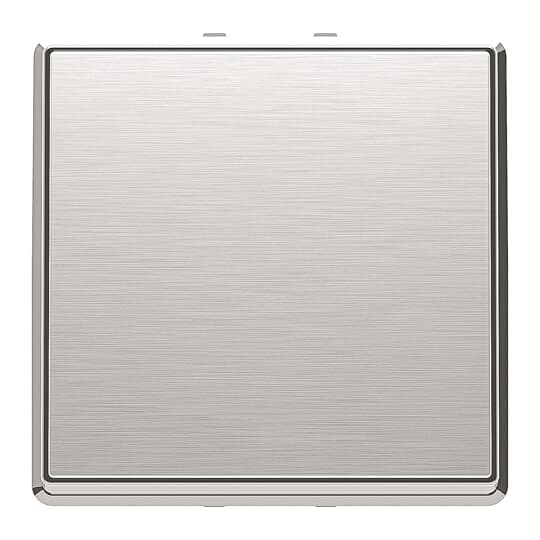

AMD11544-ST Switch 1-gang, 2-way, SP 20AX, Premium rocker size - ST
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | AMD11544-ST |
| Product ID: | 2CLA620210N1101 |
| EAN: | 8427238096247 |
| Catalog Description: | AMD11544-ST Switch 1-gang, 2-way, SP 20AX, Premium rocker size - ST |
| Long Description: | Rated voltage: 250VacRated current: 20AXPremium size rocker |
| |
| Product Name: | Switch 1-gang, 2-way, SP 20AX, Premium rocker size - ST |
| Function: | 1g2w SP switch 20AX, Premium |
| Rated Voltage (Ur): | 250 V |
| Rated Current (In): | 20 A |
| Maximum Switching Current: | Fluorescent Lamps 20 |
| Number of Rocker Switches: | 1 |
| Wiring Configuration: | Two-way switch |
| Actuator Type: | Rocker/button |
| Connection Type: | Screw |
| Mounting Type: | Flush mounted (plaster) |
| Type of Fastening: | Engage (Snap) |
| Surface Finishing: | Glossy |
| Material: | Metal |
| Label Space Provided: | No |
| Illumination: | Non-illuminated |
| Color: | Stainless steel |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection: | IP20 |
| |
| Product Net Width: | 0.116 m |
| Product Net Height: | 0.091 m |
| Product Net Depth / Length: | 0.122 m |
| Product Net Weight: | 0.04 kg |
| |
| Package Level 1 Units: | 10 piece |
| Package Level 1 Width: | 0.116 m |
| Package Level 1 Height: | 0.091 m |
| Package Level 1 Depth / Length: | 0.122 m |
| Package Level 1 Gross Weight: | 0.4 kg |
| Package Level 1 EAN: | 8427238096247 |
| |
| Minimum Order Quantity: | 10 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Spain (ES) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | 9AKK106930A7740 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK106930A7740 |
| Instructions and Manuals: | 9AKK106930A7740 |
| |
| ETIM 6: | EC001590 - Switch |
| ETIM 7: | EC001590 - Switch |
| ETIM 8: | EC001590 - Installation switch |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85365080 |
