Article: AMD85144-AN
Article: AMD85144-AN

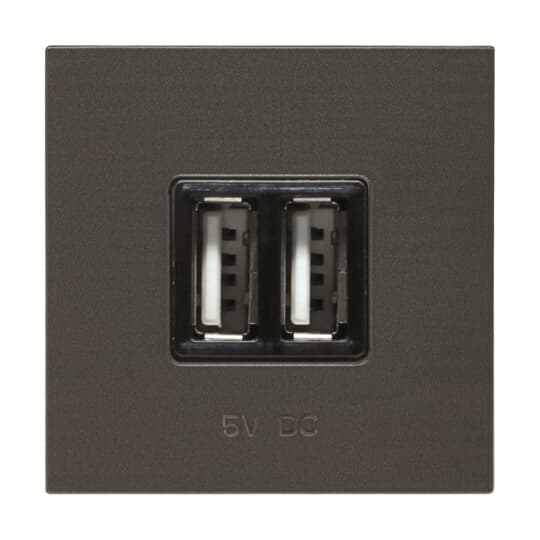

AMD85144-AN Modular USB Charger 2x Type-A 1,5A. - 2M - AN
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | AMD85144-AN |
| Product ID: | 2CLA628500N1801 |
| EAN: | 8427238112893 |
| Catalog Description: | AMD85144-AN Modular USB Charger 2x Type-A 1,5A. - 2M - AN |
| Long Description: | Input voltage: 100 - 240 Vac ±10%; 50/60 Hz.Input current: 0,20 A (with maximum load).Output voltage: 5 Vdc ±5%.Output current: 1.500 mA (total for both gangs).Power consuption in stand-by: <= 0,3W@230Vac.Energy efficiency: >= 71%.Operating temparature: 0ºC to 35ºC.Combination with frames AMD5144-XX & AMD5244-XX |
| |
| Product Name: | Modular USB Charger 2x Type-A 1,5A. - 2M - AN |
| Function: | USB Charger 2x Type-A 1,5A. 2M |
| Operational Voltage: | 100...240 V |
| Output Current Maximum (Iout): | 1500 mA |
| Frequency (f): | 50...60 Hz |
| Number of Outputs: | 2 |
| Mounting Type: | Flush mounted (plaster) |
| Material: | Plastic |
| Model Number: | Breakout cable |
| Color: | Anthracite |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| |
| Product Net Width: | 0.076 m |
| Product Net Height: | 0.064 m |
| Product Net Depth / Length: | 0.076 m |
| Product Net Weight: | 0.078 kg |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 0.076 m |
| Package Level 1 Height: | 0.064 m |
| Package Level 1 Depth / Length: | 0.076 m |
| Package Level 1 Gross Weight: | 0.078 kg |
| Package Level 1 EAN: | 8427238112893 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85369010 |
| Country of Origin: | Viet Nam (VN) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | 9AKK106930A7740 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK106930A7740 |
| Instructions and Manuals: | 9AKK106930A7740 |
| |
| ETIM 6: | EC002949 - USB power supply |
| ETIM 7: | EC002949 - USB power supply |
| ETIM 8: | EC002949 - USB power supply |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85369010 |
