General Information | |

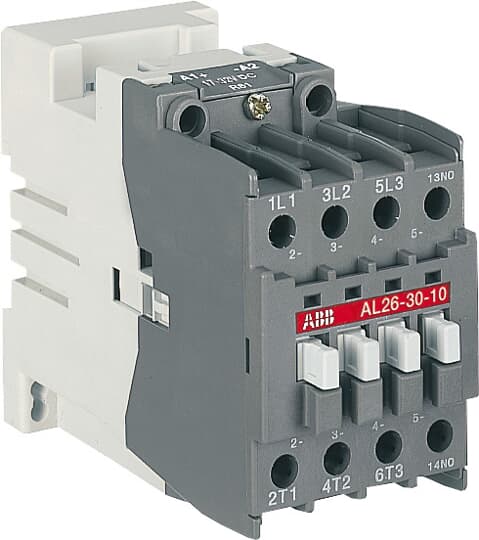

| Extended Product Type: | AL26-30-10 12V DC |
| Product ID: | 1SBL243001R8010 |
| EAN: | 3471522281807 |
| Catalog Description: | AL26-30-10 12V DC Contactor |
| Long Description: | AL26 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC or 220 V DC. The contactors can also be used for many other applications such as isolation, capacitor switching, lighting. The AL... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks - Control circuit: DC operated with solid core magnet circuit. The polarity on the coil terminals (A1+ and A2-) must be respected - Accessories: a wide range of accessories is available. AL... contactors are fitted with low consumption DC coils and are suitable for a direct control by PLC outputs. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SBC100122C0202_Ch02 |
| Instructions and Manuals: | 1SBC101007M5501 |
| Instructions and Manuals (Part 2): | 1SBC101008M5501 |
| Dimension Diagram: | FPTE307866 |
| |
| Product Net Width: | 54 mm |
| Product Net Depth / Length: | 110.6 mm |
| Product Net Height: | 90 mm |
| Product Net Weight: | 0.75 kg |
| |
| Number of Main Contacts NO: | 3 |
| Number of Main Contacts NC: | 0 |
| Number of Auxiliary Contacts NO: | 1 |
| Number of Auxiliary Contacts NC: | 0 |
| Rated Operational Voltage: | Auxiliary Circuit 690 V |
| Main Circuit 690 V | |
| Rated Frequency (f): | Supply Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (Ith): | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 45 A |
| acc. to IEC 60947-5-1, q = 40 °C 16 A | |
| Rated Operational Current AC-1 (Ie): | (690 V) 40 °C 45 |
| (690 V) 55 °C 40 | |
| (690 V) 70 °C 32 | |
| Rated Operational Current AC-3 (Ie): | (415 V) 55 °C 26 A |
| (440 V) 55 °C 26 A | |
| (500 V) 55 °C 22 A | |
| (690 V) 55 °C 13 A | |
| (380 / 400 V) 55 °C 26 A | |
| (220 / 230 / 240 V) 55 °C 26 | |
| Rated Operational Power AC-3 (Pe): | (415 V) 11 kW |
| (440 V) 15 kW | |
| (500 V) 15 kW | |
| (690 V) 11 kW | |
| (380 / 400 V) 11 kW | |
| (220 / 230 / 240 V) 6.5 kW | |
| Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1: | 8 x Ie AC-3 |
| Rated Making Capacity AC-3 acc. to IEC 60947-4-1: | 10 x Ie AC-3 |
| Rated Operational Current AC-15 (Ie): | (500 V) 2 A |
| (690 V) 2 A | |
| (24 / 127 V) 6 A | |
| (220 / 240 V) 4 A | |
| (380 / 400 V) 3 A | |
| Short-Circuit Protective Devices: | Auxiliary Circuit - gG Type Fuses 10 A |
| gG Type Fuses 50 A | |
| Maximum Breaking Capacity: | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 420 A |
| cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 106 A | |
| Maximum Electrical Switching Frequency: | (AC-1) 600 cycles per hour |
| (AC-2 / AC-4) 300 cycles per hour | |
| (AC-3) 1200 cycles per hour | |
| Rated Operational Current DC-13 (Ie): | (24 V) 6 / 144 A |
| (48 V) 2.8 / 134 A | |
| (72 V) 2 / 144 A | |
| (125 V) 1.1 / 138 A | |
| (250 V) 0.55 / 138 A | |
| Rated Insulation Voltage (Ui): | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V |
| acc. to UL/CSA 600 V | |
| Rated Impulse Withstand Voltage (Uimp): | 8 kV |
| Maximum Mechanical Switching Frequency: | 3600 cycles per hour |
| Rated Control Circuit Voltage (Uc): | DC Operation 12 V |
| Coil Consumption: | Average Holding Value, from Warm State 3.5 W |
| Average Pull-in Value, from Cold State 3.5 W | |
| Operate Time: | Between Coil De-energization and NO Contact Opening 12 ... 18 ms |
| Between Coil Energization and NO Contact Closing 55 ... 110 ms | |
| Connecting Capacity Main Circuit: | Flexible with Cable End 0.75 ... 4 mm² |
| Rigid Cable 1.5 ... 6 mm² | |
| Connecting Capacity Auxiliary Circuit: | Flexible with Cable End 0.75 ... 2.5 mm² |
| Rigid Cable 1 ... 4 mm² | |
| Degree of Protection: | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 |
| Connecting Terminals (delivered in open position) Main Poles: | M 4 (+,-) pozidriv 2 screw with cable clamp |
| Terminal Type: | Screw Terminals |
| |
| Ambient Air Temperature: | Close to Contactor Fitted with Thermal O/L Relay -25 ... +55 °C |
| Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... +55 °C | |
| Close to Contactor without Thermal O/L Relay (Uc) -40 ... +70 °C | |
| Close to Contactor for Storage -60 ... +80 °C | |
| Climatic Withstand: | acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II |
| Maximum Operating Altitude Permissible: | 3000 m |
| Resistance to Shock acc. to IEC 60068-2-27: | Closed, Shock Direction: A 20 K40 |
| Closed, Shock Direction: B1 15 K40 | |
| Closed, Shock Direction: C1 20 K40 | |
| Closed, Shock Direction: C2 14 K40 | |
| Open, Shock Direction: A 10 K40 | |
| Open, Shock Direction: B1 5 K40 | |
| Open, Shock Direction: C1 8 K40 | |
| Open, Shock Direction: C2 8 K40 | |
| Shock Direction: B2 10 K40 | |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| ASEFA Certificate: | ASEFA_05503BT |
| CB Certificate: | CB_FR3192_60016914_509747 |
| CCC Certificate: | CCC_2004010304112231 |
| CQC Certificate: | CQC2004010304112231 |
| CSA Certificate: | CSA_1033838_LR056745 |
| Declaration of Conformity - CCC: | 2020980304001611 |
| Declaration of Conformity - CE: | 1SBD250804U1000 |
| DNV Certificate: | DNV_GL_TAE00001UN-1 |
| DNV GL Certificate: | DNV_GL_TAE00001UN-1 |
| Environmental Information: | 1SBD250122E1002 |
| GL Certificate: | GL_26144_05HH |
| GOST Certificate: | GOST_POCCFRME77B07175 |
| Instructions and Manuals: | 1SBC101007M5501 |
| Instructions and Manuals (Part 2): | 1SBC101008M5501 |
| LOVAG Certificate: | LOVAG_FR03024-FR03032 |
| RoHS Information: | 1SBD250804U1000 |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 100 mm |
| Package Level 1 Depth / Length: | 134 mm |
| Package Level 1 Height: | 62 mm |
| Package Level 1 Gross Weight: | 0.75 kg |
| Package Level 1 EAN: | 3471522281807 |
| Package Level 2 Units: | box 20 piece |
| Package Level 2 Width: | 300 mm |
| Package Level 2 Depth / Length: | 245 mm |
| Package Level 2 Height: | 308 mm |
| Package Level 2 Gross Weight: | 15 kg |
| Package Level 3 Units: | 384 piece |
| |
| Object Classification Code: | Q |
| ETIM 4: | EC000066 - Magnet contactor, AC-switching |
| ETIM 5: | EC000066 - Magnet contactor, AC-switching |
| ETIM 6: | EC000066 - Power contactor, AC switching |
| ETIM 7: | EC000066 - Power contactor, AC switching |
| eClass: | V11.0 : 27371018 |
| UNSPSC: | 39121529 |
