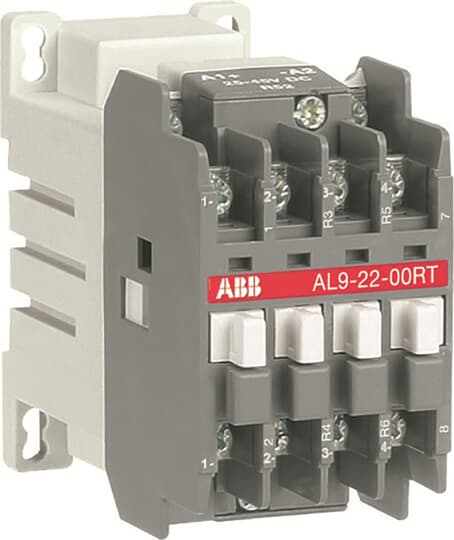

AL16-22-00RT 24V DC Contactor
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | AL16-22-00RT 24V DC |
| Product ID: | 1SBL183510R8100 |
| EAN: | 3471522360915 |
| Catalog Description: | AL16-22-00RT 24V DC Contactor |
| Long Description: | AL16 4-pole contactors are mainly used for controlling non-inductive or slightly inductive loads (i.e. resistance furnaces...) and generally for controlling power circuits up to 690 V AC and 440 V DC. The contactors can also be used for many other applications such lighting... The AL..RT contactors are the Ring Tongue terminal version of the AL... range. The AL... series 4-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 2 N.O. + 2 N.C. main poles, front and side-mounted add-on auxiliary contact blocks - Control circuit: DC operated with solid core magnet circuit. The polarity on the coil terminals (A1+ and A2-) must be respected - Accessories: a wide range of accessories is available. AL... contactors are fitted with low consumption DC coils and are suitable for a direct control by PLC outputs. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SBC104032D0201 |
| Instructions and Manuals: | 1SBC101006M5501 |
| Dimension Diagram: | FPTE307902 |
| |
| Product Net Width: | 44 mm |
| Product Net Depth / Length: | 97 mm |
| Product Net Height: | 78 mm |
| Product Net Weight: | 0.52 kg |
| |
| Number of Main Contacts NO: | 2 |
| Number of Main Contacts NC: | 2 |
| Number of Auxiliary Contacts NO: | 0 |
| Number of Auxiliary Contacts NC: | 0 |
| Rated Operational Voltage: | Main Circuit 690 V |
| Conventional Free-air Thermal Current (Ith): | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 30 A |
| Rated Operational Current AC-1 (Ie): | (690 V) 40 °C 30 |
| (690 V) 55 °C 27 | |
| (690 V) 70 °C 23 | |
| Short-Circuit Protective Devices: | gG Type Fuses 32 A |
| Maximum Electrical Switching Frequency: | (AC-1) 600 cycles per hour |
| Rated Insulation Voltage (Ui): | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V |
| acc. to UL/CSA 600 V | |
| Rated Impulse Withstand Voltage (Uimp): | 6 kV |
| Mechanical Durability: | 10 million |
| Maximum Mechanical Switching Frequency: | 3600 cycles per hour |
| Rated Control Circuit Voltage (Uc): | DC Operation 24 V |
| Coil Consumption: | Average Holding Value, from Warm State 3 W |
| Average Pull-in Value, from Cold State 3 W | |
| Operate Time: | Between Coil De-energization and NC Contact Closing 16 ... 27 ms |
| Between Coil De-energization and NO Contact Opening 10 ... 17 ms | |
| Between Coil Energization and NC Contact Opening 20 ... 70 ms | |
| Between Coil Energization and NO Contact Closing 50 ... 100 ms | |
| Connecting Capacity Main Circuit: | Flexible with Cable Lug 0.75 ... 2.5 mm² |
| Rigid Cable 0.75 ... 2.5 mm² | |
| Connecting Capacity Auxiliary Circuit: | Rigid or Flexible with Cable Lug 0.75 ... 2.5 mm² |
| Degree of Protection: | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10 |
| Connecting Terminals (delivered in open position) Main Poles: | M 3.5 (+,-) pozidriv 2 screw with conic washer |
| Terminal Type: | Ring-Tongue Terminals |
| |
| Ambient Air Temperature: | Close to Contactor for Storage -60 ... +80 °C |
| Near Contactor for Operation in Free Air (0.85 ... 1.1 Uc) -40 ... +55 °C | |
| Near Contactor for Operation in Free Air (Uc) -40 ... +70 °C | |
| Climatic Withstand: | acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II |
| Maximum Operating Altitude Permissible: | 3000 m |
| Resistance to Shock acc. to IEC 60068-2-27: | Closed, Shock Direction: A 20 K40 |
| Closed, Shock Direction: B1 15 K40 | |
| Closed, Shock Direction: C1 20 K40 | |
| Closed, Shock Direction: C2 14 K40 | |
| Open, Shock Direction: A 10 K40 | |
| Open, Shock Direction: B1 5 K40 | |
| Open, Shock Direction: C1 8 K40 | |
| Open, Shock Direction: C2 8 K40 | |
| Shock Direction: B2 10 K40 | |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| CQC Certificate: | CQC2012010304534830 |
| CSA Certificate: | CSA_1041746 |
| Declaration of Conformity - CCC: | 2020980304001613 |
| Declaration of Conformity - CE: | 1SBD250804U1000 |
| Environmental Information: | 1SBD250121E1004 |
| GOST Certificate: | GOST_POCCFRME77B07175 |
| Instructions and Manuals: | 1SBC101006M5501 |
| RoHS Information: | 1SBD250806U1000 |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 86 mm |
| Package Level 1 Depth / Length: | 141 mm |
| Package Level 1 Height: | 51 mm |
| Package Level 1 Gross Weight: | 0.52 kg |
| Package Level 1 EAN: | 3471522360915 |
| Package Level 2 Units: | box 28 piece |
| Package Level 2 Gross Weight: | 14.56 kg |
| Package Level 3 Units: | 336 piece |
| |
| Object Classification Code: | Q |
| ETIM 4: | EC000066 - Magnet contactor, AC-switching |
| ETIM 5: | EC000066 - Magnet contactor, AC-switching |
| ETIM 6: | EC000066 - Power contactor, AC switching |
| ETIM 7: | EC000066 - Power contactor, AC switching |
| eClass: | V11.0 : 27371018 |
| UNSPSC: | 39121529 |
