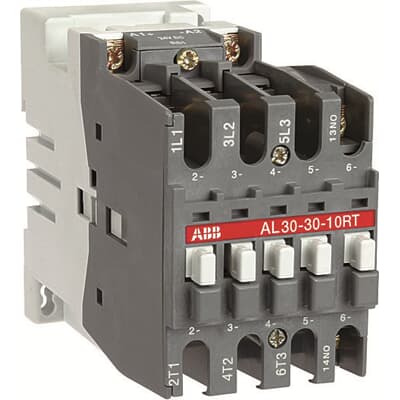

AL30-30-01RT 24V DC Contactor
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | AL30-30-01RT 24V DC |
| Product ID: | 1SBL283010R8101 |
| EAN: | 3471522361516 |
| Catalog Description: | AL30-30-01RT 24V DC Contactor |
| Long Description: | AL30 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC or 220 V DC. The contactors can also be used for many other applications such as isolation, capacitor switching, lighting. The AL... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks - Control circuit: DC operated with solid core magnet circuit. The polarity on the coil terminals (A1+ and A2-) must be respected - Accessories: a wide range of accessories is available. AL... contactors are fitted with low consumption DC coils and are suitable for a direct control by PLC outputs. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SBC104032D0201 |
| Instructions and Manuals: | 1SBC101006M5501 |
| |
| Product Net Width: | 54 mm |
| Product Net Depth / Length: | 125.3 mm |
| Product Net Height: | 90 mm |
| Product Net Weight: | 0.85 kg |
| |
| Number of Main Contacts NO: | 3 |
| Number of Main Contacts NC: | 0 |
| Number of Auxiliary Contacts NO: | 0 |
| Number of Auxiliary Contacts NC: | 1 |
| Rated Operational Current AC-1 (Ie): | (690 V) 40 °C 55 |
| (690 V) 55 °C 55 | |
| (690 V) 70 °C 39 | |
| Rated Operational Current AC-3 (Ie): | (415 V) 55 °C 32 A |
| (440 V) 55 °C 32 A | |
| (500 V) 55 °C 28 A | |
| (690 V) 55 °C 18 A | |
| (380 / 400 V) 55 °C 32 A | |
| (220 / 230 / 240 V) 55 °C 33 | |
| Rated Operational Power AC-3 (Pe): | (415 V) 15 kW |
| (440 V) 18.5 kW | |
| (500 V) 180 kW | |
| (690 V) 18.5 kW | |
| (380 / 400 V) 15 kW | |
| (220 / 230 / 240 V) 9 kW | |
| Rated Control Circuit Voltage (Uc): | DC Operation 24 V |
| Terminal Type: | Ring-Tongue Terminals |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| CQC Certificate: | CQC2004010304112235 |
| CSA Certificate: | CSA_1033838_LR056745 |
| Declaration of Conformity - CCC: | 2020980304001612 |
| Declaration of Conformity - CE: | 1SBD250804U1000 |
| Environmental Information: | 1SBD250122E1002 |
| GOST Certificate: | GOST_POCCFRME77B07175 |
| Instructions and Manuals: | 1SBC101006M5501 |
| RoHS Information: | 1SBD250806U1000 |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 100 mm |
| Package Level 1 Depth / Length: | 134 mm |
| Package Level 1 Height: | 62 mm |
| Package Level 1 Gross Weight: | 0.85 kg |
| Package Level 1 EAN: | 3471522361516 |
| Package Level 2 Units: | box 20 piece |
| Package Level 2 Gross Weight: | 17 kg |
| |
| Object Classification Code: | Q |
| ETIM 4: | EC000066 - Magnet contactor, AC-switching |
| ETIM 5: | EC000066 - Magnet contactor, AC-switching |
| ETIM 6: | EC000066 - Power contactor, AC switching |
| ETIM 7: | EC000066 - Power contactor, AC switching |
| eClass: | V11.0 : 27371018 |
| UNSPSC: | 39121529 |
