Article: AU5.32
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | AU5.32 |
| Product ID: | 2TKA001740G1 |
| EAN: | 6418677335068 |
| Catalog Description: | AU5.32 Hight mounting box |

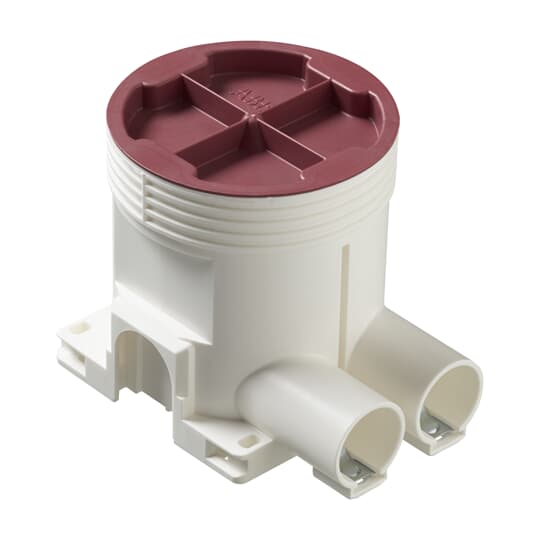

| Long Description: | The AU5.32 mounting box is 73 mm high. The box has 2 branch inlets for Ø 20 conduit. There are also 3 knock-out inlets altogether at the side, and 2 at the bottom. Made of halogen free material (IEC/61249-2-21) and fulfills the requirements of the glow wire test according to the standard IEC/EN60670: 2005 (850 °C). |
| |
| Product Name: | Hight mounting box |
| Number of Poles: | 0 |
| Number of Conduit Inlets: | 2 |
| Number of Gangs: | 1 |
| Number of Inlet Inserts Included: | 2 |
| Design: | Device connection box (round/square) |
| Cover Mounting Type: | Snap On |
| Mounting Type: | Flush mounted (plaster) |
| Switching Equipment Mounting Type: | Screw |
| Shape: | Round |
| Surface Finishing: | Untreated |
| Material: | Plastic |
| Model Number: | Single |
| Color: | White |
| |
| Product Net Width: | 0.071 m |
| Product Net Height: | 0.074 m |
| Product Net Depth / Length: | 71 mm |
| Product Net Weight: | 0.06525 kg |
| |
| Package Level 1 Units: | box 50 piece |
| Package Level 1 Width: | 0.4 m |
| Package Level 1 Height: | 0.26 m |
| Package Level 1 Depth / Length: | 0.4 m |
| Package Level 1 Gross Weight: | 3.55 kg |
| Package Level 1 EAN: | 6418677335068 |
| Package Level 3 Units: | pallet (lift) 1200 piece |
| Package Level 3 Width: | 1.2 m |
| Package Level 3 Height: | 1.1 m |
| Package Level 3 Depth / Length: | 0.8 m |
| Package Level 3 Gross Weight: | 85.2 kg |
| |
| Minimum Order Quantity: | 50 piece |
| Customs Tariff Number: | 39259080 |
| E-Number (Finland): | 1152366 |
| E-Number (Sweden): | 1422011 |
| Country of Origin: | Finland (FI) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK106713A4627 |
| Instructions and Manuals: | 9AKK10103A2549 |
| RoHS Information: | 9AKK106713A4634 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK10103A2549 |
| Instructions and Manuals: | 9AKK10103A2549 |
| |
| ETIM 6: | EC002601 - Box/housing for built-in mounting in the wall/ceiling |
| ETIM 7: | EC002601 - Box/housing for built-in mounting in the wall/ceiling |
| ETIM 8: | EC002601 - Box/housing for built-in mounting in the wall/ceiling |
| WEEE Category: | Product Not in WEEE Scope |
