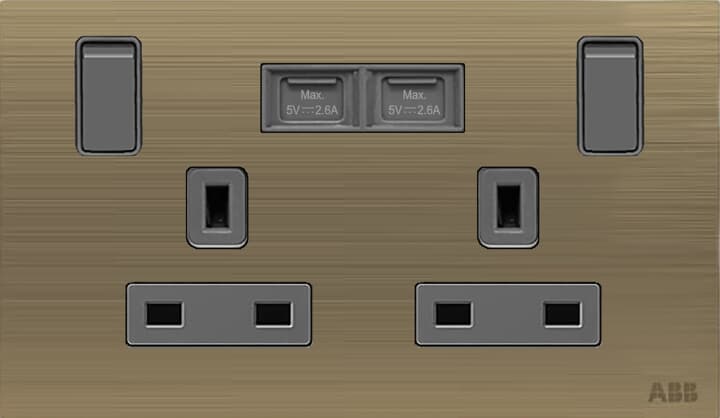

AM235147-AG BS Double socket outlet 13A, with USB-Charger Type-A, 2,6A. SP switched - AG
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | AM235147-AG |
| Product ID: | 2CLA643788N1601 |
| EAN: | 8427238226026 |
| Catalog Description: | AM235147-AG BS Double socket outlet 13A, with USB-Charger Type-A, 2,6A. SP switched - AG |
| Long Description: | Rated voltage: 250VacRated current: 13ASingle poleDual earth with child safety shutter systemIntegrated USB charger2 USB ports: USB-AMax output USB: 13W (5V*2 |
| 6A) | |
| |
| Product Name: | BS Double socket outlet 13A, with USB-Charger Type-A, 2,6A. SP switched - AG |
| Function: | BS 2-gang socket outlet 13A, with USB charger, SP sw. |
| Rated Voltage (Ur): | 220 V |
| Rated Current (In): | 13 A |
| Frequency (f): | 50 ... 60 Hz |
| Number of Phases: | 1 |
| Number of Gangs: | 2 |
| Connection Type: | Screw |
| Mounting Type: | Flush mounted (plaster) |
| Type of Fastening: | Mounting with Screw |
| Surface Finishing: | Glossy |
| Material: | Metal |
| Model Number: | British Standard |
| Color: | Gold |
| |
| Degree of Protection: | IP20 |
| Technical UL/CSA | |
| Short-Circuit Current Rating (SCCR): | 2100 mA |
| |
| Product Net Width: | 0.102 m |
| Product Net Height: | 0.06 m |
| Product Net Depth / Length: | 0.165 m |
| Product Net Weight: | 0.194 kg |
| Built-In Depth (t2): | 35 mm |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 0.165 m |
| Package Level 1 Height: | 0.062 m |
| Package Level 1 Depth / Length: | 0.102 m |
| Package Level 1 Gross Weight: | 0.205 kg |
| Package Level 1 EAN: | 8427238226026 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85366990 |
| Country of Origin: | Spain (ES) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | 2CLX623789N1001 |
| Popular Downloads | |
| Data Sheet, Technical Information: | No document needed |
| Instructions and Manuals: | 2CLX623789N1001 |
| |
| ETIM 6: | EC000125 - Socket outlet |
| ETIM 7: | EC000125 - Socket outlet |
| ETIM 8: | EC000125 - Socket outlet |
| WEEE Category: | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85366990 |
