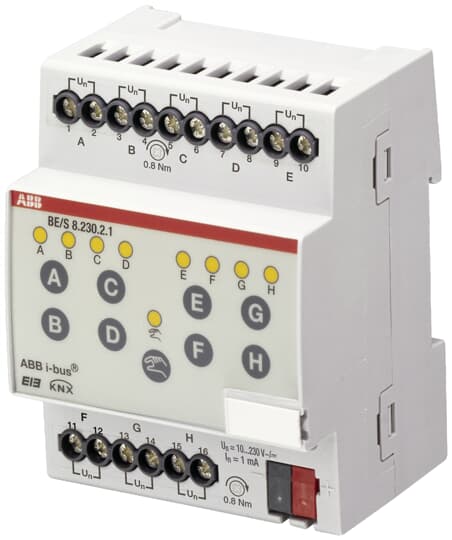

BE/S8.230.2.1 Binary Input, 8-fold, 10-230 V, MDRC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | BE/S8.230.2.1 |
| Product ID: | 2CDG110093R0011 |
| EAN: | 4016779710770 |
| Catalog Description: | BE/S8.230.2.1 Binary Input, 8-fold, 10-230 V, MDRC |
| Long Description: | The device detects eight 10...230V AC/DC signals. State inputs via 8 LEDs. Max. 8 signals are detectable. Each channel one push button for manual operation. Supplied by ABB i-bus®. |
| |
| Product Name: | Standard Inputs |
| Voltage Range: | 10 ... 230 V AC/DC |
| Input Voltage (Uin): | 10 ... 230 V |
| Input Voltage Type: | AC/DC |
| Power Loss: | 3 W |
| Number of Outputs: | 0 |
| Number of LEDs: | 9 |
| Number of Digital Inputs: | 8 |
| Compatible Bus Systems: | KNX (TP) |
| Mounting Type: | DIN-rail |
| Manual Operation: | Yes |
| Color: | Light grey |
| Number of Batteries: | 0 |
| |
| Degree of Protection: | IP20 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Width in Number of Modular Spacings: | 4 |
| Product Net Width: | 72 mm |
| Product Net Height: | 90 mm |
| Product Net Depth / Length: | 64.5 mm |
| Product Net Weight: | 0.2 kg |
| Built-In Depth (t2): | 64.5 mm |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 92 mm |
| Package Level 1 Height: | 65 mm |
| Package Level 1 Depth / Length: | 77 mm |
| Package Level 1 Gross Weight: | 0.23 kg |
| Package Level 1 EAN: | 4016779710770 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85371091 |
| E-Number (Finland): | 2815307 |
| E-Number (Sweden): | 1750247 |
| E-Number (Switzerland): | 405608405 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK504021D2701 |
| Instructions and Manuals: | 2CDG941070P0005 |
| RoHS Information: | 2CDK504021D2701 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC504041D0202 |
| 2CDC504077D0204 | |
| Instructions and Manuals: | 2CDG941070P0005 |
| |
| ETIM 6: | EC000688 - Binary input for bus system |
| ETIM 7: | EC000688 - Binary input for bus system |
| ETIM 8: | EC000688 - Binary input for bus system |
| EPLAN Catalog Tree: | Electrical engineering / Logic items / General |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8537 10 91 |
| eClass: | V11.0 : 27143121 |
| Object Classification Code: | A |
