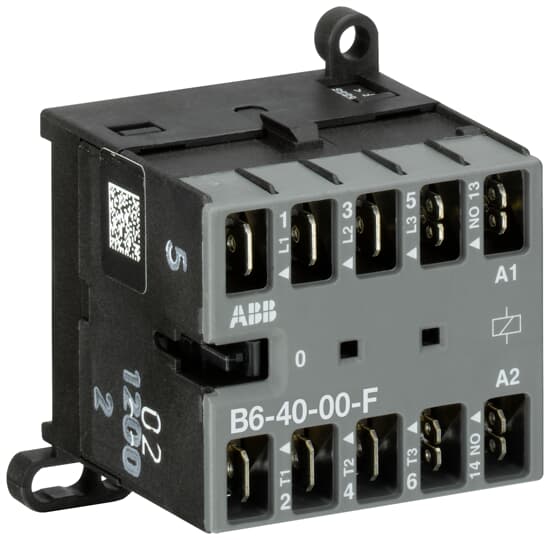

B6-40-00-F-80 Mini Contactor 220-240V 40-450Hz
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | B6-40-00-F-80 |
| Product ID: | GJL1211203R8000 |
| EAN: | 4013614153136 |
| Catalog Description: | B6-40-00-F-80 Mini Contactor 220-240V 40-450Hz |
| Long Description: | The B6-40-00-F mini contactor is a compact 4 pole contactor with flat pin connection. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 4 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SBC100214C0202 |
| Instructions and Manuals: | 2CDC102047M6801 |
| Dimension Diagram: | GJL1200437F0001 |
| |
| Product Net Width: | 52.5 mm |
| Product Net Height: | 57.5 mm |
| Product Net Depth / Length: | 46.5 mm |
| Product Net Weight: | 0.17 kg |
| |
| Number of Poles: | 4 |
| Mini Contactor Type: | Mini Contactor |
| Rated Operational Voltage: | Auxiliary Circuit 690 V AC |
| Auxiliary Circuit 250 V DC | |
| Main Circuit 690 V AC | |
| Main Circuit 220 V DC | |
| Rated Frequency (f): | Control Circuit 400 Hz |
| Control Circuit 50 Hz | |
| Control Circuit 60 Hz | |
| Main Circuit 60 Hz | |
| Main Circuit 50 Hz | |
| Main Circuit DC | |
| Rated Impulse Withstand Voltage (Uimp): | Auxiliary Circuit 6 kV |
| Main Circuit 6 kV | |
| Rated Insulation Voltage (Ui): | 690 V |
| acc. to UL/CSA 600 V | |
| Number of Main Contacts NC: | 0 |
| Number of Main Contacts NO: | 4 |
| Rated Operational Current AC-1 (Ie): | (220 / 240 V) 40 °C 20 A |
| (220 / 240 V) 55 °C 16 A | |
| (380 / 440 V) 40 °C 20 A | |
| (380 / 440 V) 55 °C 16 A | |
| (690 V) 40 °C 6 A | |
| (690 V) 55 °C 6 A | |
| Rated Operational Power AC-3 (Pe): | (230 V) Three Phase 2.2 kW |
| (400 V) Three Phase 4 kW | |
| (500 V) Three Phase 4 kW | |
| (690 V) Three Phase, NO 3 kW | |
| Rated Short-time Withstand Current (Icw): | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 64 A |
| Number of Auxiliary Contacts NC: | 0 |
| Number of Auxiliary Contacts NO: | 0 |
| Conventional Free-air Thermal Current (Ith): | Main Circuit 20 A |
| Rated Control Circuit Voltage (Uc): | 220 ... 240 V AC |
| Coil Operating Limits: | (acc. to IEC 60947-4-1) for AC supply 0.85 ... 1.1 x Uc (at θ ≤ 55 °C) |
| Degree of Protection: | Auxiliary Circuit Terminals IP20 |
| Control Circuit Terminals IP20 | |
| Main Circuit Terminals IP20 | |
| Mechanical Durability: | 10000000 cycle |
| Maximum Electrical Switching Frequency: | (AC-1) 300 cycles per hour |
| (AC-15) 360 cycles per hour | |
| (AC-3) 600 cycles per hour | |
| (DC-1) 600 cycles per hour | |
| (DC-13) 360 cycles per hour | |
| (DC-3) 600 cycles per hour | |
| Mounting on DIN Rail: | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | |
| Power Loss: | at Rated Operating Conditions per Pole 2 W |
| Standards: | IEC/EN 60947-1 |
| IEC/EN 60947-4-1 | |
| IEC/EN 60947-5-1 | |
| UL 60947-1 | |
| UL 60947-4-1 | |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | Auxiliary Circuit 600 V AC/DC |
| Main Circuit 600 V AC | |
| Full Load Amps Motor Use: | (115 V AC) Single Phase 5.8 A |
| (200 V AC) Three Phase 4.8 A | |
| (220 ... 240 V AC) Three Phase 6.8 A | |
| (230 V AC) Single Phase 4.9 A | |
| (440 ... 480 V AC) Three Phase 4.8 A | |
| (550 ... 600 V AC) Three Phase 1.7 A | |
| Horsepower Rating UL/CSA: | (115 V AC) Single Phase 0.25 Hp |
| (200 V AC) Three Phase 1 Hp | |
| (220 ... 240 V AC) Three Phase 2 Hp | |
| (230 V AC) Single Phase 0.5 Hp | |
| (440 ... 480 V AC) Three Phase 3 Hp | |
| (550 ... 600 V AC) Three Phase 1 Hp | |
| General Use Rating UL/CSA: | (300 V AC) 12 A |
| |
| Ambient Air Temperature: | Operation -20 ... +55 °C |
| Storage -40 ... +80 °C | |
| Maximum Operating Altitude Permissible: | 2000 m |
| Resistance to Shock acc. to IEC 60068-2-27: | 11 ms Pulse 15g |
| Resistance to Vibrations acc. to IEC 60068-2-6: | 5g / 5 ... 150 Hz |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| BV Certificate: | 1SAA920000-0204 |
| CB Certificate: | 1SAA938000-2002 |
| CQC Certificate: | CQC2003010304064033 |
| cURus Certificate: | cUL_E191658 |
| Declaration of Conformity - CCC: | 2020980304001854 |
| Declaration of Conformity - CE: | 1SAD938517-0001 |
| Declaration of Conformity - UKCA: | 1SAD938500-1001 |
| DNV GL Certificate: | 1SAA938000-0306 |
| EAC Certificate: | 1SAA920000-2702 |
| Environmental Information: | 1SAC200067H0009 |
| Instructions and Manuals: | 2CDC102047M6801 |
| KC Certificate: | 1SAA938000-1501 |
| LR Certificate: | 1SAA938000-0504 |
| RMRS Certificate: | 1SAA938000-0704 |
| RoHS Information: | 1SAD938517-0001 |
| |
| Package Level 1 Units: | 10 piece |
| Package Level 1 Width: | 115 mm |
| Package Level 1 Height: | 54 mm |
| Package Level 1 Depth / Length: | 280 mm |
| Package Level 1 Gross Weight: | 1.77 kg |
| Package Level 1 EAN: | 4013614413292 |
| |
| Object Classification Code: | Q |
| ETIM 4: | EC000066 - Magnet contactor, AC-switching |
| ETIM 5: | EC000066 - Magnet contactor, AC-switching |
| ETIM 6: | EC000066 - Power contactor, AC switching |
| ETIM 7: | EC000066 - Power contactor, AC switching |
| eClass: | V11.0 : 27371003 |
| UNSPSC: | 39121529 |
| E-Number (Finland): | 3709113 |
