Article: BEY16-4
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | BEY16-4 |
| Product ID: | 1SBN081313R2000 |
| EAN: | 3471523130791 |

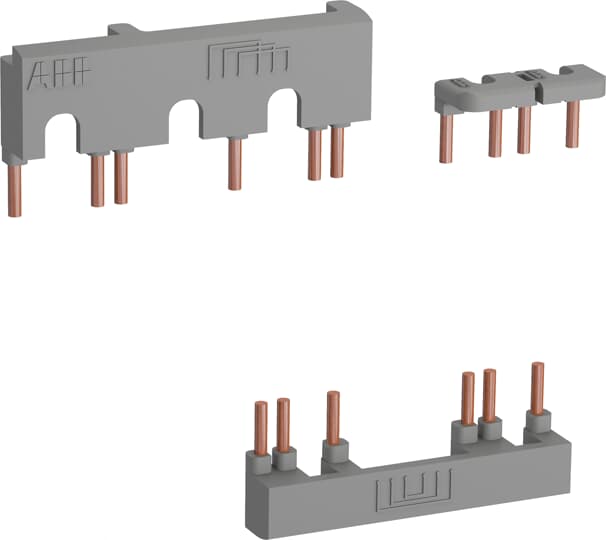

| Catalog Description: | BEY16-4 Connection Set for Star-Delta Starter |
| Long Description: | The BEY and BED connection sets are used to connect the main poles of the Line, Delta and Starcontactors of a star-delta starter.The connection sets are made up of:• Line contactor / delta contactor:-- BEY: upstream phase-to-phase connection-- BED: upstream connection in parallel• Delta contactor / star contactor: downstream connection in parallel• Star contactor: star point upstream• Insulated, solid copper bar. |
| |
| Product Name: | Connection Set |
| Suitable For: | AF09 |
| AF12 | |
| AF16 | |
| AFC09 | |
| AFC12 | |
| AFC16 | |
| AFS09 | |
| AFS12 | |
| AFS16 | |
| Terminal Type: | Screw Terminals |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Environmental Information: | 1SBD250191E1000 |
| |
| Product Net Width: | 72 mm |
| Product Net Height: | 33 mm |
| Product Net Depth / Length: | 14.55 mm |
| Product Net Weight: | 0.05 kg |
| |
| Package Level 1 Units: | bag 1 piece |
| Package Level 1 Width: | 120 mm |
| Package Level 1 Height: | 15 mm |
| Package Level 1 Depth / Length: | 150 mm |
| Package Level 1 Gross Weight: | 0.05 kg |
| Package Level 1 EAN: | 3471523130791 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| E-Number (Finland): | 3706560 |
| E-Number (Sweden): | 3211443 |
| Country of Origin: | China (CN) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 1SBD250021U1000 |
| Environmental Information: | 1SBD250191E1000 |
| GOST Certificate: | GOST_POCCFR.ME77.B07175.pdf |
| Instructions and Manuals: | 1SBC101031M6801 |
| RINA Certificate: | RINA_ELE084013XG |
| RoHS Information: | 1SBD250021U1000 |
| UL Certificate: | UL_20120730-E312527 |
| UL Listing Card: | UL_E312527 |
| Popular Downloads | |
| Instructions and Manuals: | 1SBC101031M6801 |
| UL Listing Card: | UL_E312527 |
| |
| ETIM 6: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 7: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8: | EC002498 - Accessories/spare parts for low-voltage switch technology |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 8538 90 99 |
| UNSPSC: | 39120000 |
