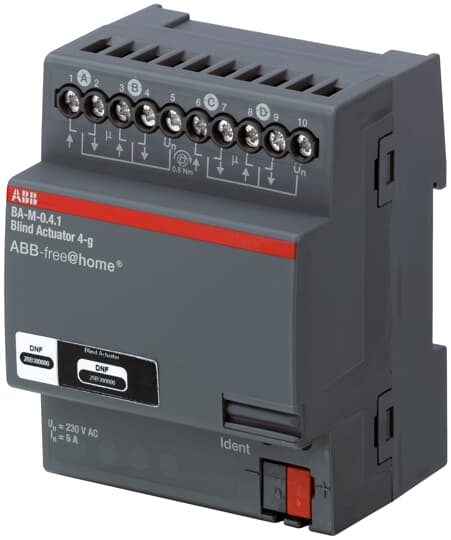

BA-M-0.4.1 Blind Actuator, 4-fold, 230 V, MDRC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | BA-M-0.4.1 |
| Product ID: | 2CDG510011R0011 |
| EAN: | 4016779941785 |
| Catalog Description: | BA-M-0.4.1 Blind Actuator, 4-fold, 230 V, MDRC |
| Long Description: | For controlling 4 independent blind or roller shutter drives. The outputs are inversely blocked. The bus can be connected via enclosed terminal block. |
| |
| Product Name: | Shading Control |
| Current Type: | AC/DC |
| Special Functions: | Switching |
| Maximum Switching Current: | 6 mA |
| Maximum Switching Power: | 1200 W |
| Power Loss: | 0.25 W |
| Number of Outputs: | 4 |
| Number of LEDs: | 1 |
| Number of Digital Inputs: | 0 |
| Number of Input Channels: | 0 |
| Compatible Bus Systems: | free@home |
| Mounting Type: | DIN-rail |
| Manual Operation: | No |
| Color: | Grey |
| Number of Batteries: | 0 |
| |
| Degree of Protection: | IP20 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Width in Number of Modular Spacings: | 4 |
| Product Net Width: | 80 mm |
| Product Net Height: | 70 mm |
| Product Net Depth / Length: | 95 mm |
| Product Net Weight: | 0.22 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 92 mm |
| Package Level 1 Height: | 65.5 mm |
| Package Level 1 Depth / Length: | 77 mm |
| Package Level 1 Gross Weight: | 0.25 kg |
| Package Level 1 EAN: | 4016779941785 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85371091 |
| E-Number (Finland): | 2815523 |
| E-Number (Sweden): | 1701113 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK506081D2701 |
| Instructions and Manuals: | 2CDG941152P0002 |
| RoHS Information: | 2CDK506081D2701 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDG941152P0002 |
| Instructions and Manuals: | 2CDG941152P0002 |
| |
| ETIM 6: | EC001330 - Shutting actuator for bus system |
| ETIM 7: | EC001330 - Shutting actuator for bus system |
| ETIM 8: | EC001330 - Shutting actuator for bus system |
| EPLAN Catalog Tree: | Electrical engineering / Sensor, switch, and pushbutton / Switch , pushbutton |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8537 10 91 |
| eClass: | V11.0 : 27143128 |
| Object Classification Code: | A |
