Article: B8622 CN
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | B8622 CN |
| Product ID: | 2CLA862200A1566 |
| EAN: | 8427238160597 |

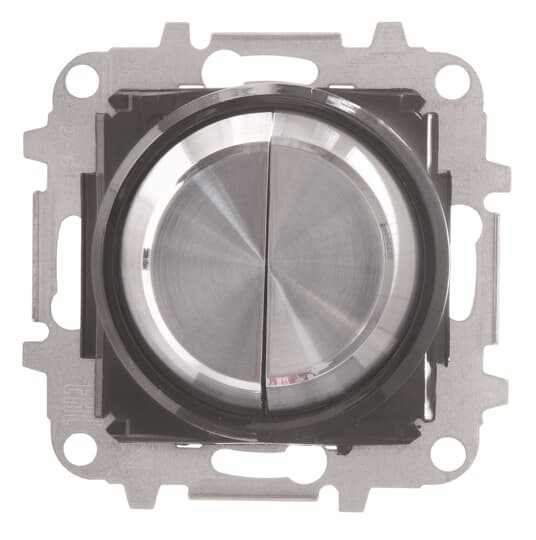

| Catalog Description: | B8622 CN Blister double 2-way switch |
| Long Description: | Blister double 2-way switchRing color: BlackRated voltage: 110 - 250 Vac Rated current: 10AX Screwless terminals Included: fixing claws |
| |
| Product Name: | Blister double 2-way switch |
| Function: | Function lighting: Orientation |
| Rated Voltage (Ur): | 250 V |
| Rated Current (In): | 10 A |
| Maximum Switching Current: | Fluorescent Lamps 10 |
| Number of Rocker Switches: | 2 |
| Wiring Configuration: | Alternating-/alternating switch |
| Actuator Type: | Rocker/button |
| Connection Type: | Plug Clamp |
| Lamp Type: | LED exchangeable |
| Mounting Type: | Flush mounted (plaster) |
| Type of Fastening: | Mounting with Claw |
| Mounting with Screw | |
| Surface Finishing: | Untreated |
| Glossy | |
| Material: | Glass |
| Label Space Provided: | No |
| Illumination: | Optional |
| Color: | Black |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection: | IP20 |
| |
| Product Net Width: | 0.170 m |
| Product Net Height: | 0.115 m |
| Product Net Depth / Length: | 0.320 m |
| Product Net Weight: | 0.134 kg |
| |
| Package Level 1 Units: | box 3 piece |
| Package Level 1 Width: | 0.170 m |
| Package Level 1 Height: | 0.115 m |
| Package Level 1 Depth / Length: | 0.320 m |
| Package Level 1 Gross Weight: | 0.402 kg |
| Package Level 1 EAN: | 8427238160597 |
| |
| Minimum Order Quantity: | 3 piece |
| Customs Tariff Number: | 85389099 |
| Country of Origin: | Spain (ES) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | 2CLX860009A1001 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107046A0356 |
| Instructions and Manuals: | 2CLX860009A1001 |
| |
| ETIM 6: | EC001590 - Switch |
| ETIM 7: | EC001590 - Switch |
| ETIM 8: | EC001590 - Installation switch |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85389099 |
