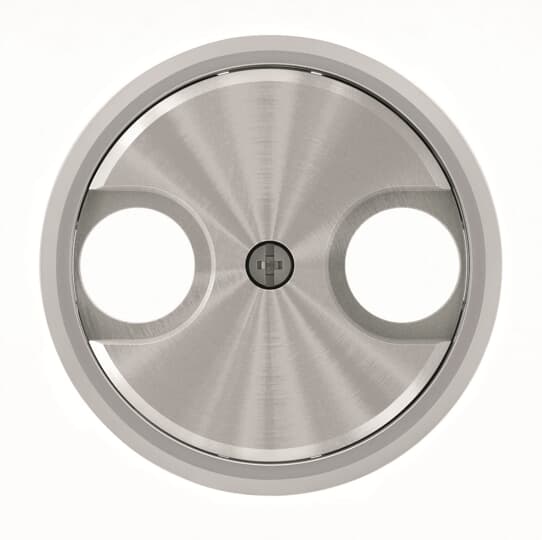

B8651.8 CR Blister TV-R/SAT intermediate outlet
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | B8651.8 CR |
| Product ID: | 2CLA865180A1466 |
| EAN: | 8427238160627 |
| Catalog Description: | B8651.8 CR Blister TV-R/SAT intermediate outlet |
| Long Description: | Blister TV-R/SAT intermediate outletRing color: ChromeTV-R and SAT double outlet - IntermidiateInstallation as an intermidiate outlet in series connected to each other.Output connectors (C1 / C2): IEC male 9,52mm diam. / IEC female 9,52mm diam.Frequency range (I/O / C1 / C2): 5 - 2.400 MHz / 5 - 2.400 MHz / 5 - 2.400 MHzBasic loss (FM / TV / SAT): 10,0±1,0 dB / 10,0±1,0 dB / 12,0±2,0 dBThrough loss (FM / TV / SAT): 2,5±0,5 / 2,5±0,7 / 3,0±1,0Directivity (FM / TV / SAT): >20 / >12 / >5Isolation (FM / TV / SAT): >45 / >30 / >28Return loss (VR / FM / TV / SAT): >13 / >13 / >12 / >12DC path (Vdc / mA / Tono): 24 max. / 500 max. / 22 KHz - DiSEqC Included: fixing claws |
| |
| Product Name: | Blister TV-R/SAT intermediate outlet |
| Mounting Type: | Flush mounted (plaster) |
| Type of Fastening: | Mounting with Claw |
| Mounting with Screw | |
| Type of Indicator: | Without indication field |
| Outlet Orientation: | Straight |
| Surface Finishing: | Glossy |
| Material: | Metal |
| Color: | Chrome |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection: | IP20 |
| |
| Product Net Width: | 0.135 m |
| Product Net Height: | 0.115 m |
| Product Net Depth / Length: | 0.155 m |
| Product Net Weight: | 0.164 kg |
| |
| Package Level 1 Units: | box 3 piece |
| Package Level 1 Width: | 0.135 m |
| Package Level 1 Height: | 0.115 m |
| Package Level 1 Depth / Length: | 0.155 m |
| Package Level 1 Gross Weight: | 0.492 kg |
| Package Level 1 EAN: | 8427238160627 |
| |
| Minimum Order Quantity: | 3 piece |
| Customs Tariff Number: | 85389099 |
| Country of Origin: | Spain (ES) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | 2CLX860009A1001 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107046A0356 |
| Instructions and Manuals: | 2CLX860009A1001 |
| |
| ETIM 6: | EC000018 - Insert/cover for communication technology |
| ETIM 7: | EC000018 - Insert/cover for communication technology |
| ETIM 8: | EC000018 - Insert/cover for communication technology |
| WEEE Category: | Product Not in WEEE Scope |
