Article: B8660.2 CR
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | B8660.2 CR |
| Product ID: | 2CLA866020A1466 |
| EAN: | 8427238160641 |

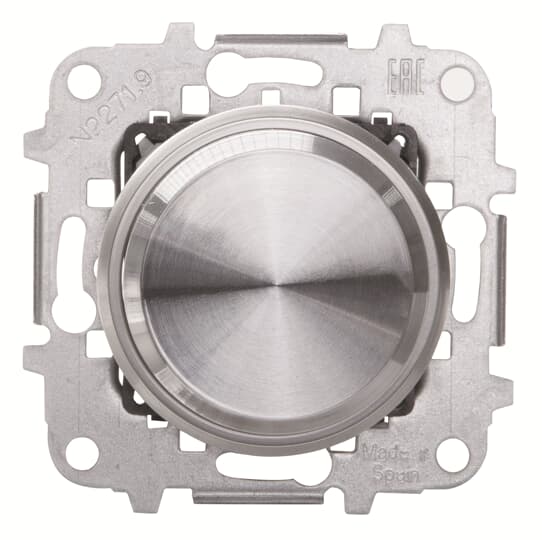

| Catalog Description: | B8660.2 CR Blister rotatory dimmer LED |
| Long Description: | Rated voltage: 230 Vac ± 10%Frequency: 50 Hz (Nominal power: 250 W/VA) / 60 Hz (Nominal power: 200 W/VA)Power (min./max load): - LEDi: 2 / 100 W/VA (max. 10 lamps) - Dimmable energy saving lamps: 2 / 100 W/VA (max. 10 lamps) - LV LEDi with transformer (only type L or LC): 4 / 100 W/VA (max. 10 lamps) - Incandescent lamps: 10 / 250 W/VA - Halogen lamps: 10 / 250 W/VA - LV halogen with transformer (only type L or LC): 10 / 250 W/VA (max. 10 lamps) 2 wire connectionOptional: auxiliary on/off with 2-way switch 8102 Indicator LED lamp includedBack-up fuse: ElectronicOverload protection: ElectronicAmbient temperature: 0°C to +35°C Without fixing claws Included: metallic rotatory knobRing color: Chrome |
| |
| Product Name: | Blister rotatory dimmer LED |
| Rated Voltage (Ur): | 230...230 V |
| Frequency (f): | 50...50 Hz |
| Power Watt: | 10...250 V·A |
| Actuator Type: | Turn button |
| Connection Type: | Screw |
| Load Type: | Universal and LED Retrofit |
| Mounting Type: | Flush mounted (plaster) |
| Type of Fastening: | Mounting with Claw |
| Mounting with Screw | |
| Surface Finishing: | Glossy |
| Material: | Metal |
| Color: | Chrome |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection: | IP20 |
| |
| Product Net Width: | 0.115 m |
| Product Net Height: | 0.085 m |
| Product Net Depth / Length: | 0.155 m |
| Product Net Weight: | 0.132 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 0.115 m |
| Package Level 1 Height: | 0.085 m |
| Package Level 1 Depth / Length: | 0.155 m |
| Package Level 1 Gross Weight: | 0.132 kg |
| Package Level 1 EAN: | 8427238160641 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| Country of Origin: | Spain (ES) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK106713A1747 |
| Instructions and Manuals: | 2CLX226039N1001 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107046A0356 |
| Instructions and Manuals: | 2CLX226039N1001 |
| |
| ETIM 6: | EC000025 - Dimmer |
| ETIM 7: | EC000025 - Dimmer |
| ETIM 8: | EC000025 - Dimmer |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85369099 |
