Article: B24 112-200
Article: B24 112-200

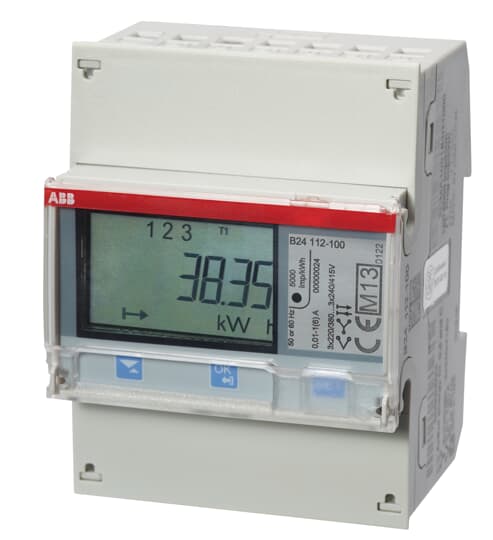

B24 112-200 Electricity Meter ; B24 112-200
We find the right product
for you
Official reseller
Expert engineering support
Configuration
):
General Information | |
| Extended Product Type: | B24 112-200 |
| Product ID: | 2CMA100810R1000 |
| ABB Type Designation: | B24 112-200 |
| EAN: | 7392696008105 |
| Catalog Description: | B24 112-200 Electricity Meter ; B24 112-200 |
| Long Description: | Advanced compact DIN-rail meter with an easy to read back lighted display. The meter is intended for use in the commercial or residential buildings etc. The meter can be used in 3 or 4 wire systems. The meter has several instrumentation values, 25 possible alarms and event logs. Three phase transformer connectedfor active energy. One output for pulses or alarm etc. RS-485 communication over Modbus RTU or EQ Bus. Accuracy class 1.0 (or B for MID meters). The meters is IEC approved + EAC approved and verified. |
| |
| Standards: | IEC 62052-11, IEC 62053-21, GOST 31818.11-2012, GOST 31819.21-2012 |
| Product Name: | Electricity Meter ; B24 112-200 |
| Function: | Electricity meter |
| Sub-Function: | Steel |
| Rated Voltage (Ur): | (Un) N-L 230 ... 240 V |
| (Un) L-L 380 ... 415 V | |
| Rated Current (In): | 6 A |
| Current Rating: | 6 A |
| Frequency (f): | 50/60 Hz |
| Power Consumption (@P | |
| cons | 0.721 W |
| Communication Interface: | Modbus |
| Accuracy: | Active Energy Class ±1% (or B for MID meters). |
| Pulse Output Rate: | 1...999999 |
| Number of Phases: | 3 |
| Number of Counter Positions: | 7 |
| ABB Type Designation: | B24 112-200 |
| Energy Meter Type: | Effective Power |
| Meter Type: | Transformer connected |
| Mounting Type: | DIN rail |
| Pulse Output Type: | Electrical |
| Type of Indicator: | Digital |
| Enclosure Material: | Plastic |
| Communication: | MODBUS RTU |
| Model Number: | Measurement transformer |
| Connecting Capacity Main Circuit: | 0.5 ... 10 mm² |
| |
| Ambient Air Temperature: | Operation -40 ... 70 °C |
| Degree of Protection: | IP20 |
| RoHS Status: | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| Environmental Information: | 2CMC485003D0001 |
| |
| Width in Number of Modular Spacings: | 4 |
| Product Net Width: | 70 mm |
| Product Net Height: | 26.5 mm |
| Product Net Depth / Length: | 65 mm |
| Product Net Weight: | 0.26 kg |
| Size: | 97X70X65 |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 100 mm |
| Package Level 1 Height: | 68 mm |
| Package Level 1 Depth / Length: | 94 mm |
| Package Level 1 Gross Weight: | 0.33 kg |
| Package Level 1 EAN: | 7392696008105 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 90283019 |
| Country of Origin: | Italy (IT) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Environmental Information: | 2CMC485003D0001 |
| Instructions and Manuals: | 2CMC485019M0201 |
| RoHS Information: | 2CMC485007 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CMC485003M0201 |
| Instructions and Manuals: | 2CMC485019M0201 |
| |
| ETIM 6: | EC001506 - Kilowatt-hour meter |
| ETIM 7: | EC001506 - Kilowatt-hour meter |
| ETIM 8: | EC001506 - Kilowatt-hour meter |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 90283019 |
| Object Classification Code: | P |
