General Information | |
| Extended Product Type: | B16 |
| Product ID: | 2CPX052063R9999 |
| EAN: | 4011617520634 |
| Catalog Description: | B16 Wall-mounting cabinet |

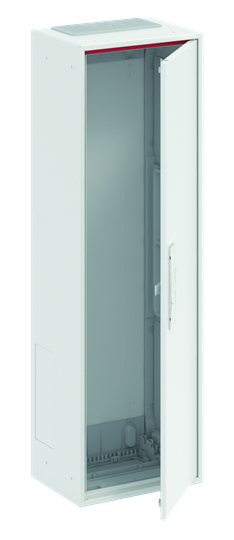

| Long Description: | Wall-mounting cabinet, empty cabinet, for the internal use, with Door, class of protection I (earthed), degree of protection IP44, rated current 250 A, powder-coated, in RAL 9016, enclosure out of sheet steel, single-leaf door, door out of sheet steel, door opening angle 120 degree, cable entry on top via membrane flange mounted, on side via flange opening pre-punched, dimensions in mm (H x W x D): 950 x 300 x 215, Grid unit 6 GU, panel width 1, Space units 72, pre-assembled for installation of modules and CombiLine Modules |
| |
| Product Name: | Wall-mounting cabinet |
| Rated Current (In): | 250 A |
| Power Loss: | Δt = 20K 47.8 W |
| Δt = 25K 63.1 W | |
| Δt = 30K 79.2 W | |
| Number of Flange Openings: | 1 |
| Number of Conduit Inlets: | 51 |
| Number of Rows: | 6 |
| Configuration Type: | pre-assembled for installation of modules and CombiLine Modules |
| Cover Plate Type: | Door |
| Enclosure Type: | Wall-mounting cabinet |
| Mounting Type: | Surface mounted/recessed mounted/partially recessed mounted |
| Door Type: | Single |
| Surface Finishing: | powder-coated |
| Housing Material: | Steel plate/plastic |
| Cover Style: | with Notch |
| DIN Place Units: | 72 |
| RAL Number: | RAL 9016 - Traffic White |
| Color: | Traffic white |
| Thickness: | Cabinet plate 0.9 mm |
| Door plate 0.9 mm | |
| |
| Degree of Protection: | IP44 |
| Protection Class: | Grounded |
| |
| Width in Number of Modular Spacings: | 12 |
| Product Net Width: | 300 mm |
| Product Net Height: | 950 mm |
| Product Net Depth / Length: | 215 mm |
| Product Net Weight: | 10.837 kg |
| Built-In Depth (t2): | 190 mm |
| |
| Package Level 1 Units: | pack 1 piece |
| Package Level 1 Width: | 350.000 mm |
| Package Level 1 Height: | 1010.000 mm |
| Package Level 1 Depth / Length: | 233.000 mm |
| Package Level 1 Gross Weight: | 11.27 kg |
| Package Level 1 EAN: | 4011617520634 |
| Package Level 2 Units: | pallet (lift) 17 piece |
| Package Level 2 Width: | 800.000 mm |
| Package Level 2 Height: | 1880.000 mm |
| Package Level 2 Depth / Length: | 1200.000 mm |
| Package Level 2 Gross Weight: | 204.229 kg |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85381000 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK107680A4773 |
| Instructions and Manuals: | 2CPC133150M5601 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| 2CPC000003B0101 | |
| 2CPC000377C0101 | |
| Instructions and Manuals: | 2CPC133150M5601 |
| |
| ETIM 6: | EC000058 - Empty cabinet |
| ETIM 7: | EC000058 - Empty cabinet |
| ETIM 8: | EC000058 - Empty cabinet |
| EPLAN Catalog Tree: | Mechanics / Housings / General |
| WEEE Category: | Product Not in WEEE Scope |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85381000 |
| Object Classification Code: | U |
