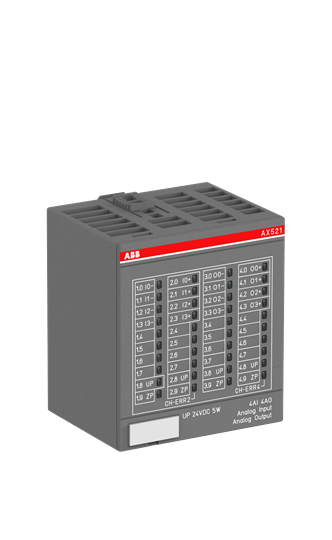

Article: AX521-KBA
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | AX521-KBA |
| Product ID: | 1SAP250100R3001 |
| ABB Type Designation: | AX521-KBA |
| EAN: | 4016779656030 |
| Catalog Description: | AX521:S500,Analog I/O.Mod.4AI/4AO,U/I/RT |
| Long Description: | AX521:S500,Analog I/O.Mod.4AI/4AO,U/I/RT 12bit+sign,24VDC,2/3-wire, KBA |
| |
| ABB Type Designation: | AX521-KBA |
| ABS Certificate: | 1SAA960002-0104 |
| Ambient Air Temperature: | Operation 0 ... +60 °C |
| Storage -40 ... +70 °C | |
| Analog Inputs: | 4 channels, 0 ... 20mA, 4 ... 20mA, -10 ... +10V, 0 ... +10V, PT100, PT1000, NI1000, usable as DI, 12bit + sign |
| Analog Outputs: | 4 channels, 0 ... 20mA, 4 ... 20mA, -10 ... +10V, max. 4 current outputs, 12bit + sign |
| BV Certificate: | 1SAA960000-0201 |
| CN8: | 85389091 |
| CSA Certificate: | 1SAA960000-1705 |
| Country of Origin: | Germany (DE) |
| Customs Tariff Number: | 85389091 |
| DNV Certificate: | 1SAA960002-0303 |
| Data Sheet, Technical Information: | 2CDC125002B0206 |
| Declaration of Conformity - CE: | 1SAD938502-0166 |
| Degree of Protection: | IP20 |
| EAN: | 4016779656030 |
| EPLAN Catalog Tree: | Electrical engineering / PLC / General |
| Environmental Information: | 1SAA960009-2401 |
| GL Certificate: | 1SAA960004-0406 |
| GOST Certificate: | 1SAA962000-2701 |
| Gross Weight: | 0.2 kg |
| I/O Option: | IO module with Onboard IO - 4AI / 4AO |
| Instructions and Manuals: | 2CDC125080M0202 |
| Invoice Description: | AX521:S500,Analog I/O.Mod.4AI/4AO,U/I/RT |
| LR Certificate: | 1SAA960002-0503 |
| Made To Order: | No |
| Maximum Operating Altitude Permissible: | 2000 m |
| Minimum Order Quantity: | 1 piece |
| Mounting Position: | Horizontal, Vertical possible with derating |
| Mounting on DIN Rail: | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Order Multiple: | 1 piece |
| Power Supply: | 24 V DC |
| Primary Voltage: | 24 V DC |
| Product Depth: | 72 mm |
| Product Main Type: | AX521 |
| Product Name: | Distributed Automation I/Os |
| Product Net Height: | 76 mm |
| Product Net Length: | 62 mm |
| Product Net Weight: | 0.13 kg |
| Product Net Width: | 67.5 mm |
| Product Type: | PLC-AC500 |
| Programming Software: | AC500 Control Builder PS501-PROG |
| Quote Only: | No |
| RINA Certificate: | 1SAA960003-0804 |
| RMRS Certificate: | 1SAA960001-0704 |
| RoHS Information: | 1SAA960006-4406 |
| SCIP: | 34cd3720-b6e9-428c-ad95-97ff0e529e20 Germany (DE) |
| Secondary Current: | 0.2 A |
| Selling Unit of Measure: | piece |
| Serial Port 2 Type: | I/O-Bus |
| Short Description: | AX521:S500,Analog I/O.Mod.4AI/4AO,U/I/RT |
| Stocked At (Warehouses): | Menden, Germany |
| Singapore, Singapore | |
| Supply Voltage: | 24 V DC |
| UL Certificate: | 1SAA960000-1606 |
| UNSPSC: | 32151705 |
| WEEE B2C / B2B: | Business To Business |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| cUL Certificate: | 1SAA960000-1705 |
| cULus Certificate: | 1SAA960000-1705 |
| eClass: | 27-24-22-02 |
