General Information | |
| Extended Product Type: | CA24VZRU |
| Product ID: | 2CPX052527R9999 |
| EAN: | 4011617525271 |
| Catalog Description: | CA24VZRU Compact distribution boards |

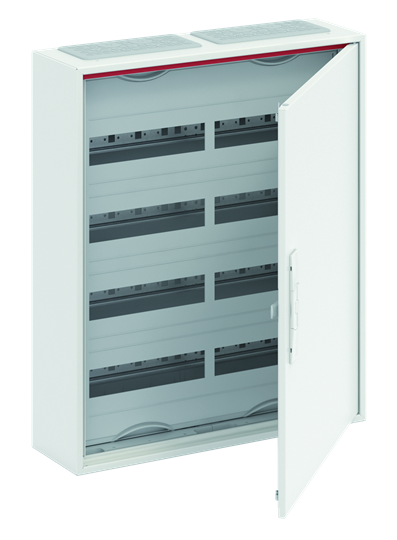

| Long Description: | Compact distribution boards, class of protection II (double insulated), rated current 125 A, metal door , dimensions in mm (H x W x D): 650 x 550 x 160, Space units 96 |
| |
| Product Name: | Compact distribution boards |
| Rated Current (In): | 125 A |
| Power Loss: | Δt = 20K 52 W |
| Δt = 25K 68.7 W | |
| Δt = 30K 86.1 W | |
| Number of Flange Openings: | 2 |
| Number of Conduit Inlets: | 102 |
| Number of Rows: | 4 |
| Cover Plate Type: | Door |
| Mounting Type: | Surface-mounted |
| Door Type: | Single |
| Surface Finishing: | powder-coated |
| Housing Material: | Steel plate/plastic |
| Cover Style: | Closed |
| DIN Place Units: | 96 |
| RAL Number: | RAL 9016 - Traffic White |
| Color: | White |
| Thickness: | Cabinet plate 0.9 mm |
| Door plate 0.9 mm | |
| |
| Degree of Protection: | IP44 |
| Protection Class: | Isolated |
| |
| Width in Number of Modular Spacings: | 24 |
| Product Net Width: | 550 mm |
| Product Net Height: | 650 mm |
| Product Net Depth / Length: | 160 mm |
| Product Net Weight: | 14.032 kg |
| Built-In Depth (t2): | 0 mm |
| |
| Package Level 1 Units: | pack 1 piece |
| Package Level 1 Width: | 556.000 mm |
| Package Level 1 Height: | 652.000 mm |
| Package Level 1 Depth / Length: | 165.000 mm |
| Package Level 1 Gross Weight: | 14.593 kg |
| Package Level 1 EAN: | 4011617525271 |
| Package Level 2 Units: | pallet (lift) 20 piece |
| Package Level 2 Width: | 800.000 mm |
| Package Level 2 Height: | 1800.000 mm |
| Package Level 2 Depth / Length: | 1200.000 mm |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85381000 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK107680A4771 |
| Instructions and Manuals: | 2CPC133150M5601 |
| Popular Downloads | |
| Data Sheet, Technical Information: | No document needed |
| Instructions and Manuals: | 2CPC133150M5601 |
| |
| ETIM 6: | EC000214 - Small distribution board |
| ETIM 7: | EC000214 - Small distribution board |
| ETIM 8: | EC000214 - Small distribution board |
| EPLAN Catalog Tree: | Mechanics / Housings / General |
| WEEE Category: | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85381000 |
| Object Classification Code: | U |
