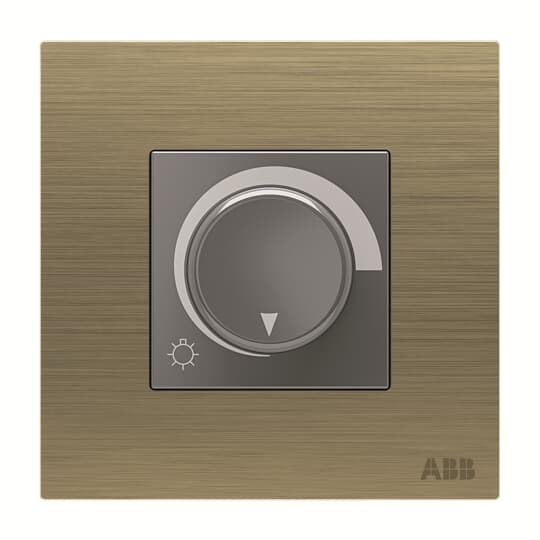

AM41344-AG Basic rotary dimmer w/frame - AG
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | AM41344-AG |
| Product ID: | 2CLA626039N1601 |
| EAN: | 8427238098180 |
| Catalog Description: | AM41344-AG Basic rotary dimmer w/frame - AG |
| Long Description: | Rated voltage: 250V~ +/-10 50 Hz.Min. power: 40W / VA.Max. power:- Incandescent lamps: 400W.- Halogen lamps with ferromagnetic transformers:300 VA.Operating temperature: 0° C to +30° C.Includes frame and metal support |
| |
| Product Name: | Basic rotary dimmer w/frame - AG |
| Function: | Dimmer w/frame, Basic, |
| Rated Voltage (Ur): | 230...230 V |
| Frequency (f): | 50...50 Hz |
| Power Watt: | 40...400 V·A |
| Actuator Type: | Turn button |
| Connection Type: | Screw |
| Load Type: | Resistive load |
| Mounting Type: | Flush mounted (plaster) |
| Type of Fastening: | Screw |
| Surface Finishing: | Glossy |
| Material: | Metal |
| Color: | Gold |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection: | IP20 |
| |
| Product Net Width: | 0.102 m |
| Product Net Height: | 0.062 m |
| Product Net Depth / Length: | 0.102 m |
| Product Net Weight: | 0.158 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 0.102 m |
| Package Level 1 Height: | 0.062 m |
| Package Level 1 Depth / Length: | 0.102 m |
| Package Level 1 Gross Weight: | 0.158 kg |
| Package Level 1 EAN: | 8427238098180 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85369099 |
| Country of Origin: | Spain (ES) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | 9AKK106930A7740 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK106930A7740 |
| Instructions and Manuals: | 9AKK106930A7740 |
| |
| ETIM 6: | EC000125 - Socket outlet |
| ETIM 7: | EC000125 - Socket outlet |
| ETIM 8: | EC000025 - Dimmer |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85369010 |
