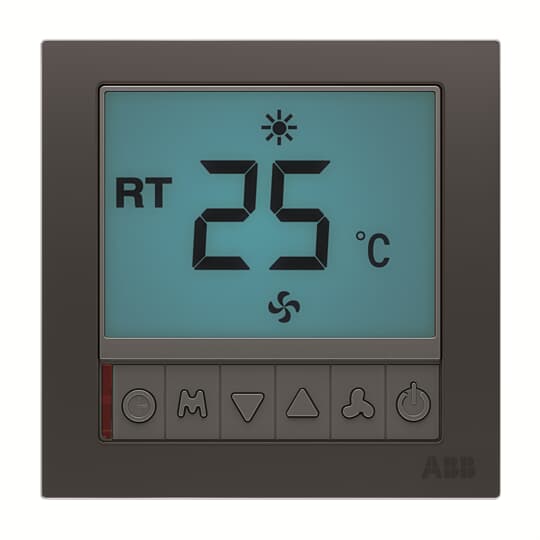

AM42086-SB Thermostat, 2 pipe, 2-wire (ON/OFF mode) - SB
We find the right product
for you
Official reseller
Expert engineering support
Configuration
):
General Information | |
| Extended Product Type: | AM42086-SB |
| Product ID: | 2CLA624069N1501 |
| EAN: | 8427238098111 |
| Catalog Description: | AM42086-SB Thermostat, 2 pipe, 2-wire (ON/OFF mode) - SB |
| Long Description: | Rated voltage: 250VacRated power: 200WSensor: NTCTemperature setting: 5° C - 35° CTemp adjustment: +/- 1° CDepth: 25,5mm |
| |
| Product Name: | Thermostat, 2 pipe, 2-wire (ON/OFF mode) - SB |
| Function: | Thermostat, 2 pipe |
| Power Consumption (@P | |
| cons | 2 W |
| Number of Outputs: | Heater 1 |
| Cooler 0 | |
| Control Characteristic: | PID |
| Operating Mode: | Button |
| Connection Type: | Two Wired |
| Mounting Type: | Flush mounted (plaster) |
| Sensor Type: | Resistance sensor |
| Material: | Metal |
| Color: | Black |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +35 °C | |
| Degree of Protection: | IP20 |
| Temperature Class Default: | II |
| |
| Product Net Width: | 102 mm |
| Product Net Height: | 62 mm |
| Product Net Depth / Length: | 102 mm |
| Product Net Weight: | 0.216 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 0.102 m |
| Package Level 1 Height: | 0.062 m |
| Package Level 1 Depth / Length: | 0.102 m |
| Package Level 1 Gross Weight: | 0.217 kg |
| Package Level 1 EAN: | 8427238098111 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| Country of Origin: | China (CN) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | 9AKK106930A7740 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK106930A7740 |
| Instructions and Manuals: | 9AKK106930A7740 |
| |
| ETIM 6: | EC000194 - Room temperature controller |
| ETIM 7: | EC010927 - Room thermostat |
| ETIM 8: | EC010927 - Room thermostat |
| WEEE Category: | Product Not in WEEE Scope |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85389099 |
