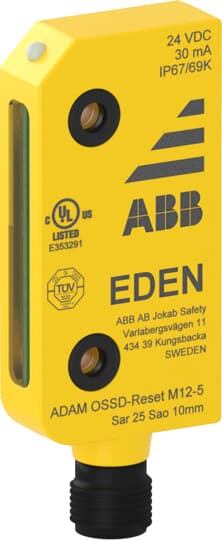

Adam OSSD-Reset M12-5 Sensor
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | Adam OSSD-Reset M12-5 |
| Product ID: | 2TLA020051R5600 |
| EAN: | 7350024480351 |
| Catalog Description: | Adam OSSD-Reset M12-5 Sensor |
| Long Description: | Adam safety sensor unit with OSSD signals and reset with indication. M12-5 male connector, IP69K, yellow. 4pcs of DA 1B distance plates and 4pcs of DA 2B distance rings are included. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 8536508099 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2TLC010001C0202 |
| Instructions and Manuals: | 2TLC172272M0201 |
| Marketing Video: | 2TLC010019N0201 |
| 2TLC010018N0201 | |
| |
| Product Net Depth / Length: | 12 mm |
| Product Net Height: | 75.2 mm |
| Product Net Width: | 30 mm |
| Product Net Weight: | 0.026 kg |
| |
| Degree of Protection: | IP67 |
| IP69K | |
| Number of Outputs: | Non-Failsafe, Undelayed Contacts 0 |
| Non-Failsafe, Undelayed Semiconductors 0 | |
| Operating Distance (Sn): | 15 mm |
| Performance Level (PL): | Up to e |
| Probability of Dangerous Failure per Hour (PFDH): | 4.5 10<sup>-9</sup> hour |
| Rated Control Supply Voltage (Us): | 24 V DC |
| |
| cULus Certificate: | 2TLC172264D0201 |
| Declaration of Conformity - CE: | 2TLC172261D0201 |
| Instructions and Manuals: | 2TLC172272M0201 |
| TÜV Certificate: | 2TLC172297D0201 |
| UL Certificate: | 2TLC172264D0201 |
| |
| Object Classification Code: | B |
| ETIM 4: | EC000030 - End switch |
| ETIM 5: | EC000030 - End switch |
| ETIM 6: | EC002544 - Magnetic proximity switch |
| ETIM 7: | EC002544 - Magnetic proximity switch |
| eClass: | V11.0 : 27272402 |
| UNSPSC: | 39122221 |
| E-Number (Sweden): | 3861645 |
