General Information | |
| Extended Product Type: | 432ERAU6W |
| Product ID: | 2CMA104403R1000 |
| EAN: | 7392696044035 |

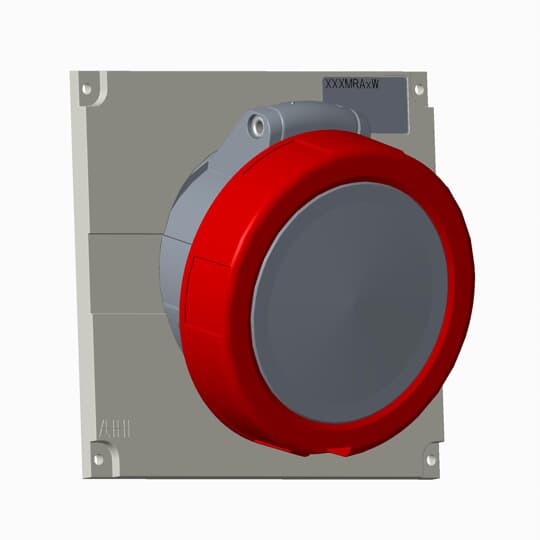

| Catalog Description: | 432ERAU6W Panel mounted socket |
| Long Description: | Panel mounted socket, 3P+N+E, 6 hour, Red, IP67, 32A, 200/346 ... 240/415V Clock Position Of Grounding Contact 6 hour Color code Red |
| |
| EAN: | 7392696044035 |
| Country of Origin: | Czech Republic (CZ) |
| Minimum Order Quantity: | 5 piece |
| |
| Product Net Width: | 113 mm |
| Product Net Height: | 119 mm |
| Product Net Weight: | 0.22 kg |
| |
| Package Level 1 Width: | 122 mm |
| Package Level 1 Depth / Length: | 530 mm |
| Package Level 1 Height: | 104 mm |
| Package Level 1 Gross Weight: | 1.565 kg |
| Package Level 1 EAN: | 7392696044097 |
| Package Level 1 Units: | box 5 piece |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| CB Certificate: | 2CHC660169X0201 |
| Declaration of Conformity - CE: | 2CMC700005D0001 |
| Environmental Information: | 2CMC000056M0000 |
| RoHS Information: | 2CMC700005D0001 |
| REACH Declaration: | 2CMC700005D0001 |
| |
| Additional Information: | 3P+N+E |
| Ambient Temperature: | -25 ... 40 °C |
| Cable Cross-Section: | 2.5 ... 6 mm² |
| Cable Diameter: | 13 ... 21.5 mm |
| Color: | Red |
| Connection Type: | Screw |
| Degree of Protection: | IP67 |
| Frequency (f): | 50 and 60 Hz |
| Function: | Panel mounted socket |
| Housing Material: | Plastic (PA) |
| Invoice Description: | Ind. P&S#432ERAU6W |
| Mounting Holes: | 113x99 |
| Mounting Type: | Unified angled flange |
| Number of Poles: | 5 |
| Order Multiple: | 5 piece |
| Product Main Type: | ERAU |
| Product Name: | Panel mounted socket |
| Protection Type: | Watertight |
| Rated Current (In): | 32 A |
| Rated Frequency (f): | 50...60 Hz |
| Rated Voltage (Ur): | 200/346 ... 240/415 V |
| Standards: | IEC 60309-1, -2 |
| Suitable for Product Class: | IEC Industrial Plugs and Sockets |
| Instructions and Manuals: | 2CMC700014C0016 |
| RAL Number: | RAL 7012 - Basalt Grey |
| |
| eClass: | 27440504 |
| UNSPSC: | 39120000 |
| |
| Wire Size: | 12 ... 10 AWG |
| Tightening Torque: | WireClamp1.2 N·m |
