Article: 416BS11
Article: 416BS11

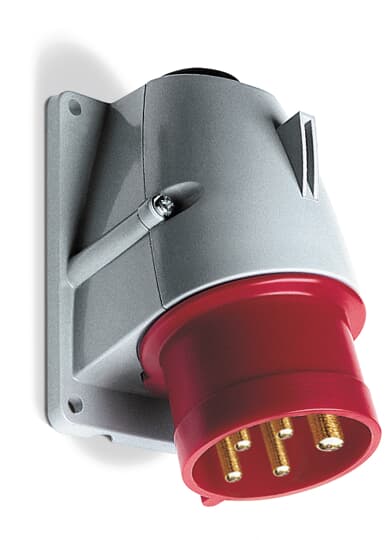

Industrial Inlets, 3P+N+E, 16 A, 250/440 … 265/460 V
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | 416BS11 |
| Product ID: | 2CMA193310R1000 |
| EAN: | 7392696933100 |
| Catalog Description: | Industrial Inlets, 3P+N+E, 16 A, 250/440 … 265/460 V |
| Long Description: | Wall mounted inlet, earthing sleeve position 11h, rated current 16A, IP44 splashproof, 3-poles+neutral+earth, frequency 50-60 Hz, color code red |
| |
| E-Number (Sweden): | 2417177 |
| E-Number (Finland): | 2417177 |
| E-Number (Norway): | 2417177 |
| EAN: | 7392696933100 |
| Country of Origin: | Czech Republic (CZ) |
| Minimum Order Quantity: | 10 piece |
| |
| Product Net Width: | 79 mm |
| Product Net Height: | 100 mm |
| Product Net Weight: | 0.200 kg |
| Mechanical Drawings: | 9AKK107680A3016 |
| |
| Package Level 1 Width: | 154 mm |
| Package Level 1 Depth / Length: | 182 mm |
| Package Level 1 Height: | 378 mm |
| Package Level 1 Gross Weight: | 2 kg |
| Package Level 1 EAN: | 7392696663106 |
| Package Level 1 Units: | box 10 piece |
| Package Level 2 Width: | 800 mm |
| Package Level 2 Depth / Length: | 1200 mm |
| Package Level 2 Height: | 900 mm |
| Package Level 2 Gross Weight: | 920 kg |
| Package Level 2 EAN: | 7392696080354 |
| Package Level 2 Units: | pallet (lift) 450 piece |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Declaration of Conformity - CE: | 2CMC700005D0001 |
| Environmental Information: | 2CMC000056M0000 |
| RoHS Information: | 2CMC700005D0001 |
| SEMKO Certificate: | 2CHC660161X0201 |
| REACH Declaration: | 2CMC700005D0001 |
| |
| Additional Information: | 3P+N+E |
| Ambient Temperature: | -25 ... 40 °C |
| Cable Cross-Section: | 1.5 ... 4 mm² |
| Cable Diameter: | 18 mm |
| Color: | Red |
| Connection Type: | Screw |
| Degree of Protection: | IP44 |
| Design: | Surface mounted plug |
| Frequency (f): | 60 Hz |
| Function: | Wall mounted inlet |
| Housing Material: | Plastic (PA) |
| Invoice Description: | Ind. P&S#416BS11 |
| Mounting Holes: | 91x67 |
| Mounting Type: | Angled |
| Number of Poles: | 5 |
| Order Multiple: | 10 piece |
| Product Main Type: | EBS |
| Product Name: | Wall mounted inlet |
| Protection Type: | Splashproof |
| Rated Current (In): | 16 A |
| Rated Frequency (f): | 60...60 Hz |
| Rated Voltage (Ur): | 250/440 ... 265/460 V |
| Recommended Screw Driver: | PH2 |
| Standards: | IEC 60309-1, -2 |
| Suitable for Product Class: | IEC Industrial Plugs and Sockets |
| Instructions and Manuals: | 2CMC700014C0016 |
| RAL Number: | RAL 7012 - Basalt Grey |
| |
| eClass: | 27440519 |
| UNSPSC: | 39121406 |
| |
| Wire Size: | 14 ... 12 AWG |
| Tightening Torque: | WireClamp0.8 N·m |
