Article: CI512-ETHCAT
Article: CI512-ETHCAT

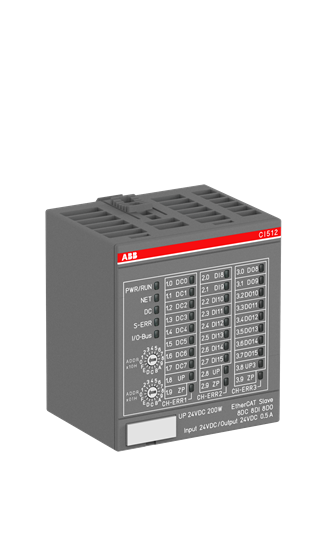

CI512-ETHCAT:S500,Bus-Module,8DC/8DI/8DO
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CI512-ETHCAT |
| Product ID: | 1SAP221000R0001 |
| ABB Type Designation: | CI512-ETHCAT |
| EAN: | 4016779664837 |
| Catalog Description: | CI512-ETHCAT:S500,Bus-Module,8DC/8DI/8DO |
| Long Description: | CI512-ETHCAT:S500,Bus-Module8DC/8DI/8DO 24VDC,DI/DC:24VDC,DO/DC:24VDC/0.5A 1/2-wire,ETHERCAT |
| |
| ABB Type Designation: | CI512-ETHCAT |
| CN8: | 85389091 |
| Country of Origin: | Germany (DE) |
| Customs Tariff Number: | 85389091 |
| Declaration of Conformity - C-Tick: | 1SAA960000-3302 |
| Declaration of Conformity - KCC: | 1SAA960001-4801 |
| EAN: | 4016779664837 |
| EPLAN Catalog Tree: | Electrical engineering / PLC / General |
| ETIM 7: | EC001604 - Fieldbus, decentr. periphery - communication module |
| ETIM 8: | EC001604 - Fieldbus, decentr. periphery - communication module |
| Fieldbus Interface Type: | EtherCAT |
| Gross Weight: | 0.162 kg |
| Invoice Description: | CI512-ETHCAT:S500,Bus-Module,8DC/8DI/8DO |
| Made To Order: | No |
| Minimum Order Quantity: | 1 piece |
| Order Multiple: | 1 piece |
| Product Main Type: | CI512 |
| Product Name: | Distributed Automation I/Os |
| Product Net Height: | 76 mm |
| Product Net Length: | 62 mm |
| Product Net Weight: | 0.138 kg |
| Product Net Width: | 67.5 mm |
| Product Type: | PLC-AC500 |
| Quote Only: | No |
| RoHS Date: | 0209 |
| SCIP: | ee4c4b38-a1db-420e-89a3-99164cf538a5 Germany (DE) |
| Selling Unit of Measure: | piece |
| Short Description: | CI512-ETHCAT:S500,Bus-Module,8DC/8DI/8DO |
| Stocked At (Warehouses): | Menden, Germany |
| Singapore, Singapore | |
| Hangzhou, China | |
| Supply Voltage: | 24 V DC |
| UNSPSC: | 32151705 |
| WEEE B2C / B2B: | Business To Business |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass: | 27-24-26-07 |
| Where Used (as part of "kit") |
