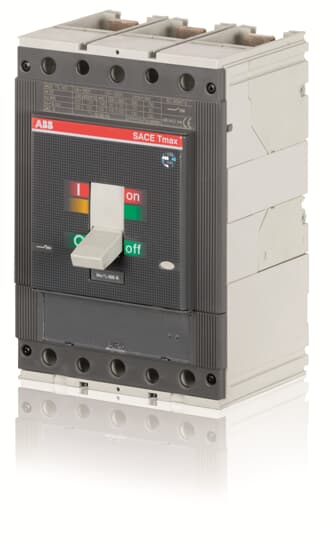

Article: T5D 400 3p F F
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | T5D 400 3p F F |
| Product ID: | 1SDA054599R1 |
| EAN: | 8015644556976 |
| Catalog Description: | T5D 400 3p F F |
| Long Description: | SWITCH-DISCONNECTOR TMAX T5D 400 FIXED THREE-POLE WITH FRONT TERMINALS |
| |
| E-Number (Finland): | 3655613 |
| EAN: | 8015644556976 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85362090 |
| |
| Product Net Width: | 140 mm |
| Product Net Height: | 205 mm |
| Product Net Depth / Length: | 103.5 mm |
| Product Net Weight: | 4.304 kg |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 248 mm |
| Package Level 1 Height: | 240 mm |
| Package Level 1 Depth / Length: | 285 mm |
| Package Level 1 Gross Weight: | 3.8 kg |
| Package Level 1 EAN: | 8015644556976 |
| |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| |
| Mechanical Durability: | 20000 cycle |
| 120 cycles per hour | |
| Number of Poles: | 3 |
| Power Loss: | at Rated Operating Conditions per Pole 16.5 W |
| Product Main Type: | SACE Tmax T |
| Product Name: | Moulded Case Circuit Breaker |
| Product Type: | SD |
| Rated Impulse Withstand Voltage (Uimp): | 8 kV |
| Rated Insulation Voltage (Ui): | 1000 V |
| Rated Operational Voltage: | 690 V AC |
| 750 V DC | |
| Rated Short-time Withstand Current (Icw): | for 1 s 6 A |
| Rated Uninterrupted Current (Iu): | 400 A |
| Short-Circuit Performance Level: | D |
| Standards: | IEC 60947 |
| Sub-type: | T5 |
| Suitable For: | T5 |
| Suitable for Product Class: | Moulded Case Circuit Breakers |
| Terminal Connection Type: | Fixed Circuit-Breakers |
| Front | |
| Test Voltage Max (Utest): | 3000 V |
| Test Voltage at Industrial Frequency for 1 Minute: | 3000 V |
| Version: | F |
| |
| Data Sheet, Technical Information: | 1SDC210004D0203 |
| Declaration of Conformity - CE: | 1SDL000165R0005 |
| Environmental Information: | 1SDL000191R0003 |
| Instructions and Manuals: | 1SDH000437R0001 |
| Instructions and Manuals (Part 2): | ITSCE-RH0100001 |
| REACH Declaration: | LB-DT 18-21D |
| RoHS Information: | LB-DT 17-21D |
| |
| ETIM 4: | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 5: | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| ETIM 6: | EC000216 - Switch disconnector |
| ETIM 7: | EC000216 - Switch disconnector |
| Object Classification Code: | Q |
| UNSPSC: | 39121100 |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
