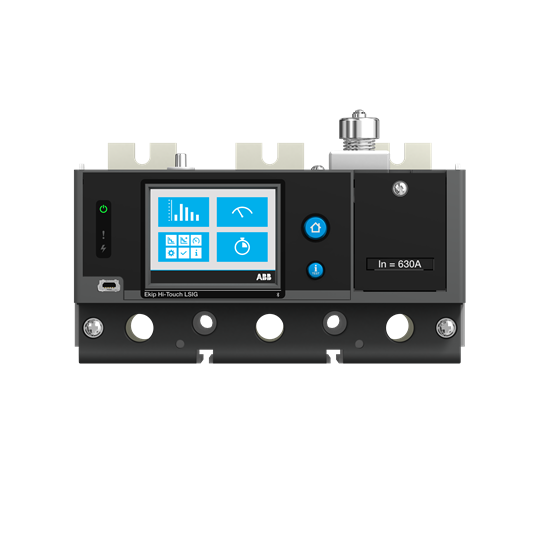

Ekip Touch LSIG In=250 XT5 3p
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | Ekip Touch LSIG In=250 XT5 3p |
| Product ID: | 1SDA100594R1 |
| EAN: | 8056221006705 |
| Catalog Description: | Ekip Touch LSIG In=250 XT5 3p |
| Long Description: | SOLID-STATE RELEASE THREE-POLE IN AC EKIP TOUCH LSIG R 250 XT5 |
| |
| EAN: | 8056221006705 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| |
| Product Net Width: | 120 mm |
| Product Net Height: | 160 mm |
| Product Net Depth / Length: | 190 mm |
| Product Net Weight: | 1.395 kg |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 120 mm |
| Package Level 1 Height: | 180 mm |
| Package Level 1 Depth / Length: | 225 mm |
| Package Level 1 Gross Weight: | 1.559 kg |
| Package Level 1 EAN: | 8056221006705 |
| |
| Ambient Air Temperature: | Operation -40 ... 125 °C |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| |
| Circuit Breaker Type to be Associated: | Power Distribution |
| Configuration Type: | Loose or configurable |
| Current Type: | AC |
| Number of Poles: | 3 |
| Order Multiple: | 1 piece |
| Product Main Type: | Accessories for Tmax XT |
| Product Name: | Accessory |
| Product Type: | ACC |
| Rated Current (In): | 250 A |
| Release: | Ekip Touch LSIG |
| Release Type: | EL |
| Standards: | IEC 60947 |
| Suitable For: | XT5 |
| |
| Data Sheet, Technical Information: | 1SDC210100D0206 |
| 1SDC210099D0206 | |
| Instructions and Manuals: | 1SDH002039A1002 |
| REACH Declaration: | LB-DT 18-21D |
| RoHS Information: | LB-DT 17-21D |
| |
| ETIM 7: | EC001023 - Shunt release (for power circuit breaker) |
| Object Classification Code: | Q |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
