Article: OS160D21W
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | OS160D21W |
| Product ID: | 1SCA022537R2290 |
| EAN: | 6417019170145 |

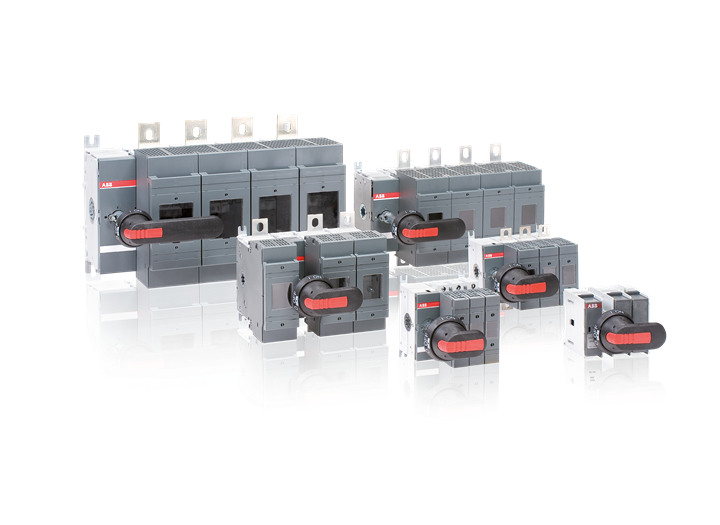

| Catalog Description: | OS160D21W Switch fuse |
| Long Description: | Switch fuse |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SCC311013C0201 |
| Instructions and Manuals: | 1SCC311003M0001 |
| |
| Product Net Width: | 180 mm |
| Product Net Height: | 144 mm |
| Product Net Depth / Length: | 131 mm |
| Product Net Weight: | 1.84 kg |
| |
| Rated Operational Current AC-21A (Ie): | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Current AC-22A (Ie): | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Current AC-23A (Ie): | (500 V) 160 A |
| (380 ... 415 V) 160 A | |
| Rated Operational Current AC-23B (Ie): | (500 V) 160 A |
| (380 ... 415 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Power AC-23A (Pe): | (500 V) 90 kW |
| (690 V) 132 kW | |
| (400 V) 75 kW | |
| (415 V) 75 kW | |
| (220 ... 240 V) 45 kW | |
| Conventional Free-air Thermal Current (Ith): | q = 40 °C 160 A |
| Conventional Thermal Current (Ithe): | Fully Enclosed 160 A |
| Rated Operational Voltage: | 690 V AC |
| Power Loss: | at Rated Operating Conditions per Pole 9 W |
| Handle Type: | Not included |
| Switches Operating Mechanism: | Mechanism Between the Poles |
| Position of Line Terminals: | Top In - Bottom Out |
| Bottom In - Top Out | |
| Fuse Size: | 000,00 |
| Fuse System: | DIN |
| Operating Mode: | Front Operated |
| Number of Poles: | 3 |
| Fuse Type: | DIN |
| |
| Environmental Information: | 1SCC311002D0201 |
| |
| Declaration of Conformity - CE: | 1SCC311005D0201 |
| Environmental Information: | 1SCC311002D0201 |
| Instructions and Manuals: | 1SCC311003M0001 |
| RoHS Information: | 1SCC311107D0201 |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 172 mm |
| Package Level 1 Depth / Length: | 285 mm |
| Package Level 1 Height: | 144 mm |
| Package Level 1 Gross Weight: | 1.84 kg |
| Package Level 1 EAN: | 6417019170145 |
| |
| Object Classification Code: | Q |
| ETIM 5: | EC001040 - Fuse switch disconnector |
| ETIM 6: | EC001040 - Fuse switch disconnector |
| ETIM 7: | EC001040 - Fuse switch disconnector |
| ETIM 8: | EC001040 - Fuse switch disconnector |
