General Information | |
| Extended Product Type: | OT600U13DP |
| Product ID: | 1SCA113382R1001 |
| EAN: | 6417019459646 |

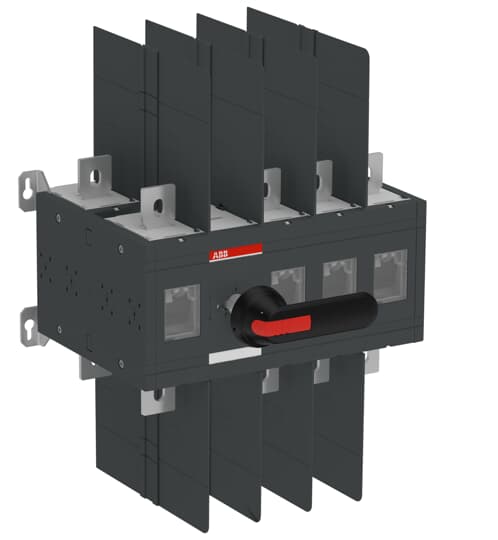

| Catalog Description: | OT600U13DP SWITCH-DISCONNECTOR |
| Long Description: | OT600U13DP SWITCH-DISCONNECTOR |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Finland (FI) |
| Popular Downloads | |
| Instructions and Manuals: | 1SCC301075F0204 |
| |
| Product Net Width: | 376 mm |
| Product Net Height: | 250 mm |
| Product Net Depth / Length: | 280 mm |
| Product Net Weight: | 18.2 kg |
| |
| Rated Operational Current AC-22A (Ie): | (380 ... 415 V) 800 A |
| (500 V) 800 A | |
| (690 V) 800 A | |
| Rated Operational Current AC-23A (Ie): | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Conventional Thermal Current (Ithe): | Fully Enclosed 600 A |
| Rated Impulse Withstand Voltage (Uimp): | 12 kV |
| Rated Insulation Voltage (Ui): | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Voltage: | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm): | (690 V) 80 kA |
| Rated Short-time Withstand Current (Icw): | for 1 s 20 kA |
| Power Loss: | at Rated Operating Conditions per Pole 40 W |
| Pollution Degree: | 3 |
| Handle Color: | Black |
| Handle Type: | Handle and shaft included |
| Standards: | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 |
| Number of Poles: | 8 |
| Degree of Protection: | Front IP00 |
| Terminal Type: | Lug terminals |
| Tightening Torque: | acc. IEC 60947-1 56.5 N·m |
| Mechanical Durability: | 10000 |
| Lock Type: | Yes |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | 600 V |
| Ampere Rating UL/CSA: | 600 A |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Declaration of Conformity - CE: | 1SCC301140D2704 |
| Instructions and Manuals: | 1SCC301075F0204 |
| RoHS Information: | 1SCC301149D0203 |
| UL Certificate: | cULus certificate OT600 |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 320 mm |
| Package Level 1 Depth / Length: | 570 mm |
| Package Level 1 Height: | 340 mm |
| Package Level 1 Gross Weight: | 21.3 kg |
| Package Level 1 EAN: | 6417019459646 |
| |
| Object Classification Code: | Q |
| ETIM 5: | EC000216 - Switch disconnector |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
