Article: Tina 8A
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | Tina 8A |
| Product ID: | 2TLA020054R0500 |
| EAN: | 7350024451870 |

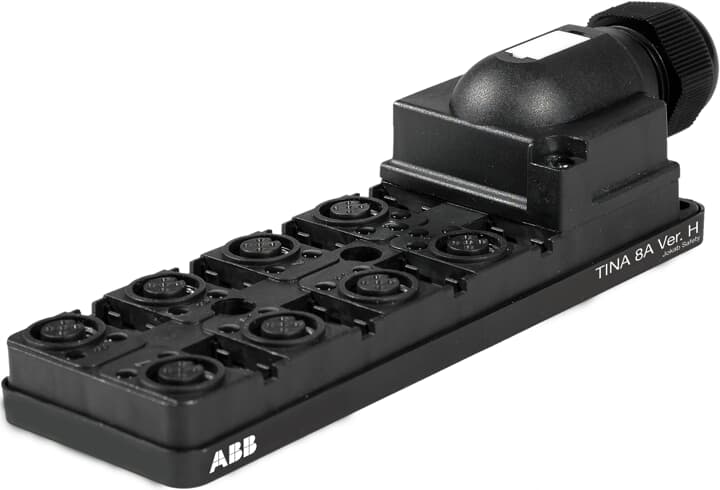

| Catalog Description: | Tina 8A DYNlink connection accessory |
| Long Description: | Connection block for series connection of up to 8 DYNlink devices. Eight M12-5 female connectors for the devices. The information signal of each device can be wired separately. The cable used for the connection to the Tina 8A should have a diameter 7 - 12 mm. If less than 8 devices are connected, complete with Tina 1A blind plugs. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 8544429090 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2TLC010001C0202 |
| Instructions and Manuals: | 2TLC172142M0201 |
| |
| Product Net Depth / Length: | 50 mm |
| Product Net Height: | 45 mm |
| Product Net Width: | 169 mm |
| Product Net Weight: | 0.14 kg |
| |
| Suitable For: | Pluto AS-i v2 |
| Pluto A20 v2 | |
| Pluto B20 v2 | |
| Pluto B22 | |
| Pluto B42 AS-i | |
| Pluto B46 v2 | |
| Pluto D20 | |
| Pluto D20 (Harsh Env) | |
| Pluto D45 | |
| Pluto D45 (Harsh Env) | |
| Pluto O2 | |
| Pluto S20 v2 | |
| Pluto S46 v2 | |
| Vital 1 | |
| Vital 2 | |
| Vital 3 | |
| |
| CSA Certificate: | 2TLC172045D0201 |
| Declaration of Conformity - CE: | 2TLC172017D0201 |
| Instructions and Manuals: | 2TLC172142M0201 |
| TÜV Certificate: | 2TLC172046D0401 |
| |
| Object Classification Code: | T |
| ETIM 4: | EC001584 - I/O device for bus system |
| ETIM 5: | EC001584 - I/O device for bus system |
| ETIM 6: | EC001584 - I/O device for bus system |
| ETIM 7: | EC001584 - I/O device for bus system |
| UNSPSC: | 39122221 |
| E-Number (Finland): | 2307385 |
| E-Number (Sweden): | 3861370 |
